Hoval homeheat vv-2

Use

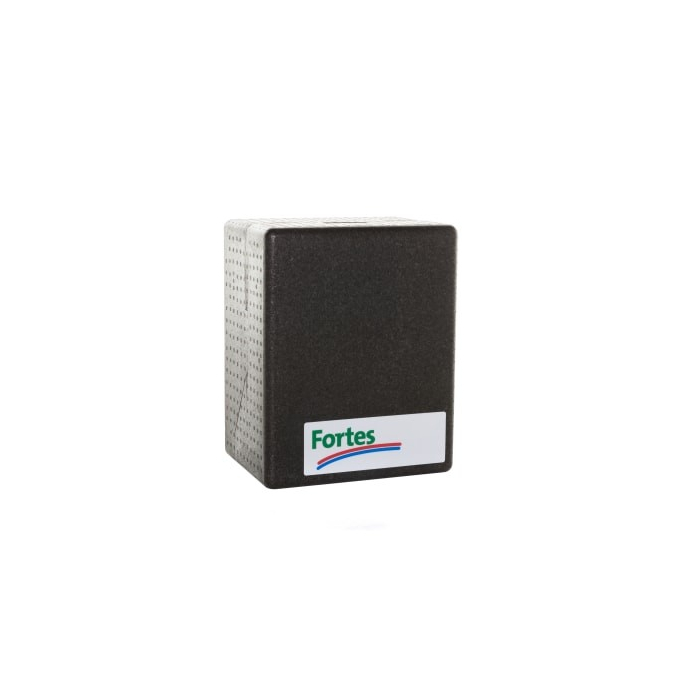

Fortes Energy Systems, Hoval HomeHeat VV 2 (XB06H+ 40) . Plug & play, efficient, economical and suitable for low temperature district heating.
HomeHeat VV 2 is based on a high-performance exchanger, which, in conjunction with Hoval's intelligent control, ensures optimal cooling for the district heating plant both during bottling and at idle.

The water heater is fully insulated and meets the latest insulation requirements (DS452)
The main component of the water heater is Hoval's intelligent hot water regulation, which stands out from common regulations on the market.

Here there are no complicated self-acting valves, as well as moving parts on the domestic water side, which can scale and get stuck. Furthermore, there is also no thermostat, which can lose the filling and thereby impair the regulation.

The domestic water temperature does not have to be manually adjusted by variation of the summer and winter supply temperature, this is handled by Hoval's intelligent control.
The booster pump kit is easily and simply mounted by mounting the pump and subsequently the supplied cable is clicked in Hoval's controller, i.e. Plug &
Play.

HomeHeat VV is not dependent on specific sensor orientation and can therefore be mounted exactly as the customer wishes or what is most appropriate in relation to the installation.

HomeHeat VV-2 has the same connection distances as Gemina Novi type 2, and Redan Akva Lux 2 with 40 plates, so it is easy to replace from older Gemina / older Redan water heaters to a new Fortes Hoval, which is also often mounted as a new unit rather than replacing defective pm regulator on older Redan exchangers. It is plug and play replacement, as the pipe dimensions fit just above, only 230V with ground for Hoval needs to be remembered because of the intelligent computer that controls the hot water production.

• Optimum cooling for the district heating plant during bottling, idling and heating
• No complicated self-acting valves with moving parts on the domestic water side
• Fully adjustable idle temperature, incredibly flexible and easily adapted to the individual user/installation.
• Pipe dimensions such as old Novi type 2 and Akva Lux 2 can be replaced as Plug & play, just remember 230V for the Hoval control
• Design data:
• Pressure step: PN16
• 40 plates (53kW)
• Max. temperature: 110°C
• Weight: 6.5 - 8.5 kg
• Dimensions / dimensions: H415 × B320 × D240
• Insulation: Polypropylene (EPP)
• Connection dim.: 3/4 RG
• Power consumption: 2.9W
