Kaiser Dåse forfra ø68mm d49mm hf

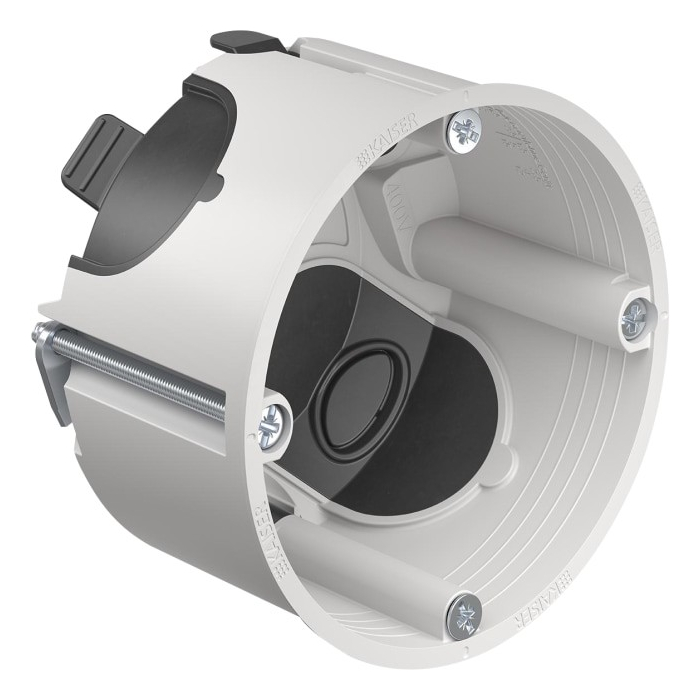

Kaiser front view can 9263-78 airtight and halogen-free with sealing membranes
Cutout dimensions Ø68mm
Depth 49mm
Used for installation in light walls, such as plaster and wooden walls.
Standard center distance between switches: 71mm
Double insulated penetration between can combinations.
Cutout forms for cable and pipe entry.
Integrated relief for NYM cables in DIN 60670/DIN 49073, Self-locking groove pipes.
For panel thickness 7-40mm
2 cable inputs 3 x 2.5mm² or 5 x 1.5mm²
2 cable input 3 x 1.5mm²

Bearing protection class	2
Brand	KAISER
Ceiling hook fastening	No
Colour	White
Construction type	Appliance box
Country of origin	DE - Germany
Cover	None
Cover fastening	Skruet
Depth (mm)	48 - 48 mm
Description	9263-78
Diameter (mm)	68 mm
EAN number	4013456548282
EL number	7917053059
Equipped with swivel ring	No
Fitted with	None
Fixed clamp	No
Food contact material	No
For number of appliance inserts	1
For pipe diameter	16/20 mm
Form	Rund
Halogen-free	Yes
House penetration by exit form	No
Housing penetration through nozzle	No
Housing penetration through phased membrane	Yes
Housing penetration through sealing membrane	Yes
Input from the back	Yes
Installation method	Planforsænket
Installation of appliance	Skrue
Interconnectable	Yes
Interior depth	44 mm
Material	Plastik
Max. conductor cross-section	2.5 mm²
Net weight	25,68 g / STK
Number of entries	4
Number of spouts delivered	7
Pack size	25
Performance	None
Pipe closure	No
Pipe locking optional	No
Ports, form factor	Apparatdåse
Product code	270117338
Protection class (IP)	IP3X
REACH – contains substances from the Candidate List?	No
RoHS compliant	Yes
Sealable	No
Special application	Other
Stock item	Yes
Stud/nozzle	Tunnelforgreningsrør
Suitable for cable diameter	1 - 12 mm
Suitable for wall/plate thickness	7 - 40 mm
Surface treatment	Other
Type	Enkelt
Unit	STK
UNSPSC	39121303
Windproof	Yes
With nail fastening	No
With screws	Yes
With shielding	No
