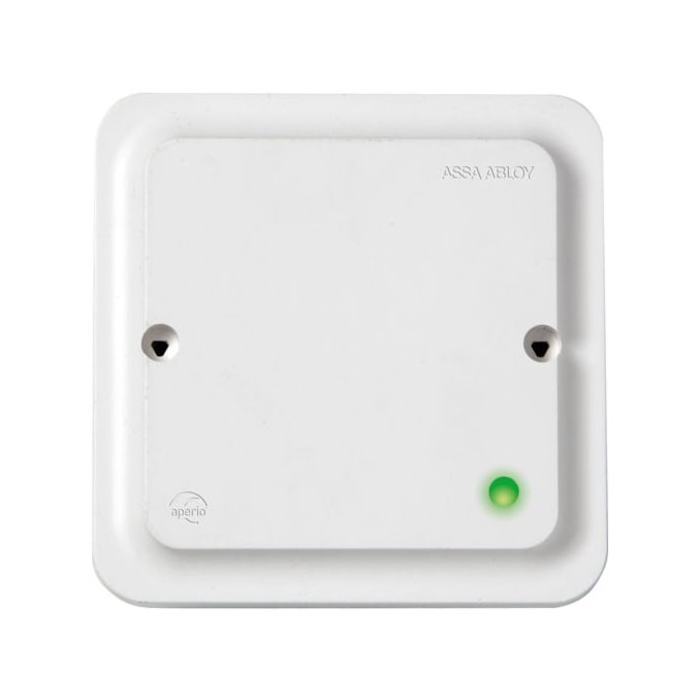

Assa abloy Aperio advanced wiegand ah-20 g5, hvid
Main image
Click to view image in fullscreen
![]()
Aperio® Adwanced Wiegand AH-20 G5, white.For connection to access control system via Wiegand interface.
Non-stock item - Expected shipment 26-03-2026 - if you order today
↻
Updating inventory, please wait...
Last Updated:
EAN
7391166657669
Supplier no.
5401006478
Type no.
958730
Price per Styk
€503.49
Excl. Tax:
€402.79
Excl. Tax:
Excl. Tax:
Regular Price
€600.56
Min. order 1 Styk
Description / Assa abloy Aperio advanced wiegand ah-20 g5, hvid
For connection to access control system via Wiegand interface
Ensures radio communication to Aperio® door units
Built-in antenna with the possibility of mounting an external antenna
Encrypted radio communication
For standard electrical installation boxes
LED for status visualization
Additional relay outputs: These relay outputs can be connected to the control unit. The messages can be as follows: DPS (Door Position), RX Request to exit), Battery Alarm Output, Tamper Alarm Output, Lock Jammed.
• Surface / Color: white
• Communication protocol: Wiegand
• Communication interface: Wiegand
• Generation: Generation_5
Technical specifications
Dimensions: 82 x 82 x 37 mm (H x W x D)
Power supply: 8 - 24 VDC
Relay: 30VDC/1A resistor load (advanced version only)
Radio standard: IEEE 802.15.4 (2.4 GHz) - 16 channels (11-26)
Encryption (radio communication): AES 128 bit
Wireless operating range: Range 15-25 m, depending on environment
Receiver sensitivity: - 100dBm 20%PER
Wireless operating range: Range 15-25 m, depending on environment
Internal antenna: 2 cross-polarized dipoles
External antenna: A reverse polarity SMA external antenna connector. Type (dipole) and not with antenna gain greater than 3.9dBi.<br />Protection class: IP 20<br />Operating temperature range: 5°C to 35°C<br />Humidity: < 95% (non-condensing)<br />Door status: LED (red/green/orange)<br/><br/>Approvals: CE, ETL, FCC, IC, C-Tick<br/>Safety and emission: FCC 47CFR Part 15 Subpart B and Subpart C. IC RSS-210; EN ETSI 301 489-17 v2.1.1. EN ETSI 300 328 v1.7.1; EN 60950-1 ed.2: 2007; UL 294-2010; C22.2
Ensures radio communication to Aperio® door units
Built-in antenna with the possibility of mounting an external antenna
Encrypted radio communication
For standard electrical installation boxes
LED for status visualization
Additional relay outputs: These relay outputs can be connected to the control unit. The messages can be as follows: DPS (Door Position), RX Request to exit), Battery Alarm Output, Tamper Alarm Output, Lock Jammed.
• Surface / Color: white
• Communication protocol: Wiegand
• Communication interface: Wiegand
• Generation: Generation_5
Technical specifications
Dimensions: 82 x 82 x 37 mm (H x W x D)
Power supply: 8 - 24 VDC
Relay: 30VDC/1A resistor load (advanced version only)
Radio standard: IEEE 802.15.4 (2.4 GHz) - 16 channels (11-26)
Encryption (radio communication): AES 128 bit
Wireless operating range: Range 15-25 m, depending on environment
Receiver sensitivity: - 100dBm 20%PER
Wireless operating range: Range 15-25 m, depending on environment
Internal antenna: 2 cross-polarized dipoles
External antenna: A reverse polarity SMA external antenna connector. Type (dipole) and not with antenna gain greater than 3.9dBi.<br />Protection class: IP 20<br />Operating temperature range: 5°C to 35°C<br />Humidity: < 95% (non-condensing)<br />Door status: LED (red/green/orange)<br/><br/>Approvals: CE, ETL, FCC, IC, C-Tick<br/>Safety and emission: FCC 47CFR Part 15 Subpart B and Subpart C. IC RSS-210; EN ETSI 301 489-17 v2.1.1. EN ETSI 300 328 v1.7.1; EN 60950-1 ed.2: 2007; UL 294-2010; C22.2
Link to manufacturer:
Assa abloy
Assa abloy
More Information
| Accessory | Yes |
| Food contact material | No |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | Yes |
| Type of accessory / spare part | Other |
| UNSPSC | 46171516 |
