Assa abloy Aperio e100 ble scand v3 rustfrit stål
Main image
Click to view image in fullscreen
![]()

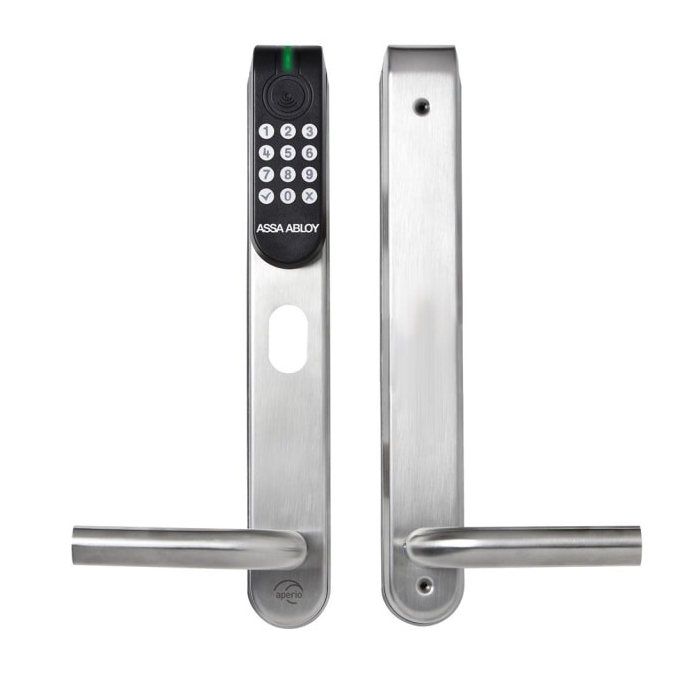

Aperio® E100 BLE Scandinavian V3 Stainless steel. Battery operated wireless online m keyboard. Cylinder hole outside, blind inside. IP52
Non-stock item - Expected shipment 26-03-2026 - if you order today
↻
Updating inventory, please wait...
Last Updated:
EAN
7391166657881
Supplier no.
5401006482
Type no.
958735
Price per Styk
€812.76
Excl. Tax:
€650.21
Excl. Tax:
Excl. Tax:
Regular Price
€1,143.61
Min. order 1 Styk
Description / Assa abloy Aperio e100 ble scand v3 rustfrit stål
The Aperio® E100 SCAND BLE KB3520RI is a battery-powered wireless online door leaf reader with keyboard. This variant has a cylinder hole on the outside and a blind inside..
This series replaces the E100 SCAND 3420RI.
It is designed for doors where you want to reduce the cost of introducing access control.
Installation of the E100 SCAND BLE version does not require any intervention in the door if the door is prepared for the installation of a Scandinavian module or connect lock according to SIS 817383.
NB: To use Bluetooth, the access control system must support HID SEOS mobile credentials.
No external power supply is required as readers are powered by a battery. LEDs on the reader indicate read card/tag as well as approved or rejected card/tag.
The new E100 SCAND BLE V3 reader has a short poll time of just 10 seconds, allowing for schema-controlled unlocking as well as opening on command.
The exterior door handle has clearance and is connected by approved card reading. The interior door handle is always connected, so it is possible to open the door from the inside just by using the door handle.
The Aperio® E100 SCAND BLE reader is available for different door thicknesses. The handle stick can be changed if you want a different door thickness.
• Surface / Color: Stainless steel
• Access control type: Online, Offline
• Reader/keyboard: Reader with keyboard
• Protection class: IP52
• Long plate variant - Exterior side: cylinder hole
• Long plate variant - Inner side: blind
• Media technology: MIFARE Classic, iCLASS, MIFARE DESFire EV1, SEOS, iCLASS SE, MIFARE Plus, MIFARE DESFire EV2, NFC, Bluetooth Low Energy (BLE)
• Center distance: 105 mm
Package includes:
1 pcs long sign with grip stick and battery, installation instructions, Quickguide, screw bag
Technical specifications
Three access levels (PIN, card or a combination of PIN and card)
PIN: code between 4 and 8 digits
This series replaces the E100 SCAND 3420RI.
It is designed for doors where you want to reduce the cost of introducing access control.
Installation of the E100 SCAND BLE version does not require any intervention in the door if the door is prepared for the installation of a Scandinavian module or connect lock according to SIS 817383.
NB: To use Bluetooth, the access control system must support HID SEOS mobile credentials.
No external power supply is required as readers are powered by a battery. LEDs on the reader indicate read card/tag as well as approved or rejected card/tag.
The new E100 SCAND BLE V3 reader has a short poll time of just 10 seconds, allowing for schema-controlled unlocking as well as opening on command.
The exterior door handle has clearance and is connected by approved card reading. The interior door handle is always connected, so it is possible to open the door from the inside just by using the door handle.
The Aperio® E100 SCAND BLE reader is available for different door thicknesses. The handle stick can be changed if you want a different door thickness.
• Surface / Color: Stainless steel
• Access control type: Online, Offline
• Reader/keyboard: Reader with keyboard
• Protection class: IP52
• Long plate variant - Exterior side: cylinder hole
• Long plate variant - Inner side: blind
• Media technology: MIFARE Classic, iCLASS, MIFARE DESFire EV1, SEOS, iCLASS SE, MIFARE Plus, MIFARE DESFire EV2, NFC, Bluetooth Low Energy (BLE)
• Center distance: 105 mm
Package includes:
1 pcs long sign with grip stick and battery, installation instructions, Quickguide, screw bag
Technical specifications
Three access levels (PIN, card or a combination of PIN and card)
PIN: code between 4 and 8 digits
Link to manufacturer:
Assa abloy
Assa abloy
More Information
| Food contact material | No |
| Integration | Dørdel |
| Opening direction (according to DIN) | Venstre/højre |
| Power type | DC |
| Protected from water | Yes |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | Yes |
| Type | Dørkodeåbner |
| UNSPSC | 30171512 |
| With feedback | Yes |
