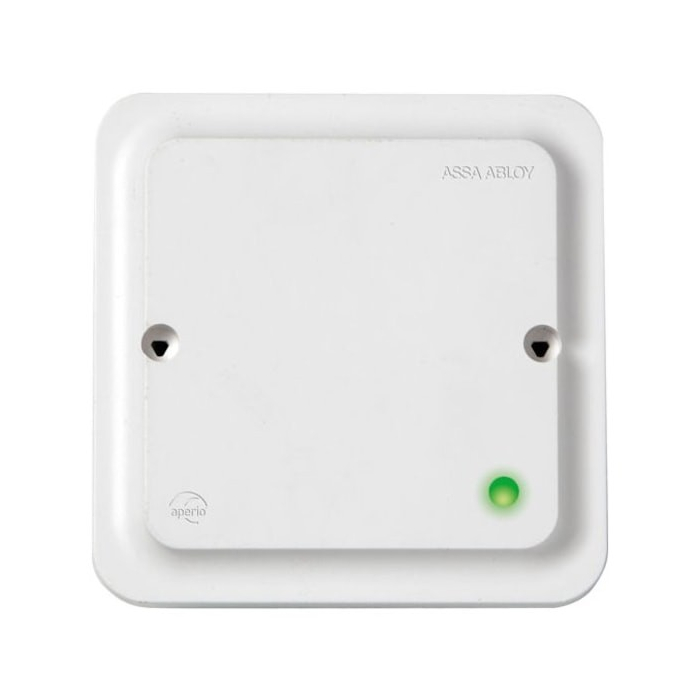

Assa abloy Aperio wiegand ah-20 g5, hvid

For connection to access control system via Wiegand interface

Ensures radio communication to Aperio® door units
Built-in antenna with the possibility of mounting an external antenna
Encrypted radio communication
For standard electrical installation boxes
LED for status visualization

• Surface / Color: white
• Communication protocol: ASSA ABLOY Device Protocol
• Communication interface: Wiegand
• Generation: Generation_5

Technical specifications
Dimensions: 82 x 82 x 37 mm (H x W x D)
Power supply: 8 - 24 VDC
Radio standard: IEEE 802.15.4 (2.4 GHz) - 16 channels (11-26)
Encryption (radio communication): AES 128 bit
Wireless operating range: Range 15-25 m, depending on environment
Receiver sensitivity: - 100dBm 20%PER
Wireless operating range: Range 15-25 m, depending on environment
Internal antenna: 2 cross-polarized dipoles
External antenna: A reverse polarity SMA external antenna connector. Type (dipole) and not with antenna gain greater than 3.9dBi.<br />Protection class: IP 20<br />Operating temperature range: 5°C to 35°C<br />Humidity: < 95% (non-condensing)<br />Door status: LED (red/green/orange)<br/><br/>Approvals: CE, ETL, FCC, IC, C-Tick<br/>Safety and emission: FCC 47CFR Part 15 Subpart B and Subpart C. IC RSS-210; EN ETSI 301 489-17 v2.1.1. EN ETSI 300 328 v1.7.1; EN 60950-1 ed.2: 2007; UL 294-2010; C22.2

Link to manufacturer:
Assa abloy
Assa abloy

Accessory	Yes
Food contact material	No
REACH – contains substances from the Candidate List?	No
RoHS compliant	Yes
Type of accessory / spare part	Other
UNSPSC	46171516
