Ventil r2032-10-b2 dn32 kvs=10 2-vejs
Main image
Click to view image in fullscreen
![]()

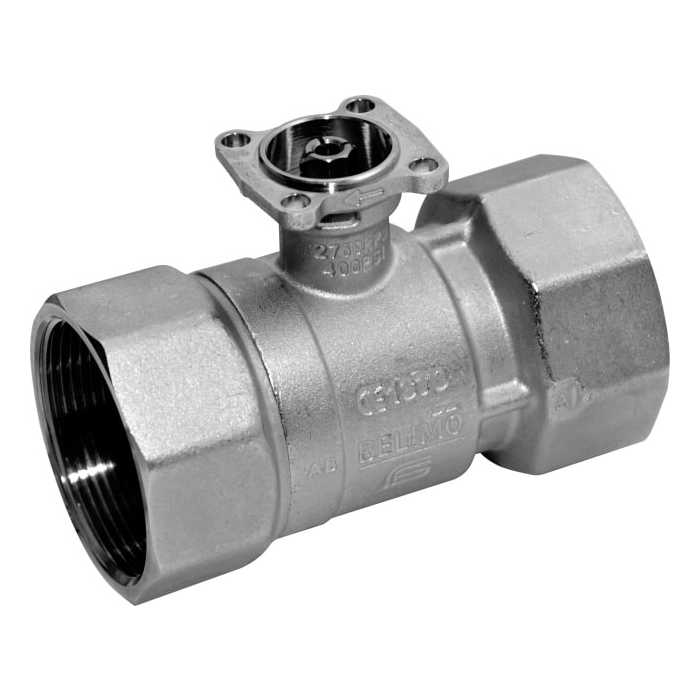

Valve R2032-10-B2, 2-way ball/control valve with internal thread, DN25, kvs value 10, PN16.
Non-stock item - Expected shipment 19-03-2026 - if you order today
↻
Updating inventory, please wait...
Last Updated:
EAN
5705150101151
Supplier no.
5478511155
Type no.
R2032-10-B2
VVS No.
900420066
Price per Styk
€189.51
Excl. Tax:
€151.61
Excl. Tax:
Excl. Tax:
Regular Price
€288.64
Min. order 1 Styk
Description / Ventil r2032-10-b2 dn32 kvs=10 2-vejs
More Information
| Ball sealing material | PTFE |
| Bullet material | Rustfri stål |
| Connection 1 | Indvendigt rørgevind cylindrisk (BSPP) |
| Connection 2 | Indvendigt rørgevind cylindrisk (BSPP) |
| Design | 2-delt |
| Dimension connection 1 | 1 1/4"" |
| External pipe diameter connection 1 | 42.9 mm |
| External pipe diameter connection 2 | 42.9 mm |
| Fireproof | No |
| Food contact material | No |
| Gasket | EPDM |
| Material enclosures | Messing |
| Material for housing | Messing |
| Material quality | Zinkfri messing |
| Maximum mean temperature (continuous) | 120 °C |
| Minimum medium temperature (continuous) | -10 °C |
| Nominal diameter | 1 1/4"" |
| Nominal diameter connection 2 | 1 1/4"" |
| Operation | El - motor |
| Pressure class | PN 16 |
| Primary spindle sealing material | EPDM |
| REACH – contains substances from the Candidate List? | No |
| Rectifier current | None |
| RoHS compliant | Yes |
| Secondary spindle sealing material | EPDM |
| Spindle material | Rustfri stål |
| Surface protection, housing | None |
| Surface treatment | Nikkelbelagt |
| Type | Lige |
| UNSPSC | 40141607 |
