Carlo Gavazzi Kap.aft m30 dc 0-25pnp no/ncuskærmet 2m
Main image
Click to view image in fullscreen
![]()

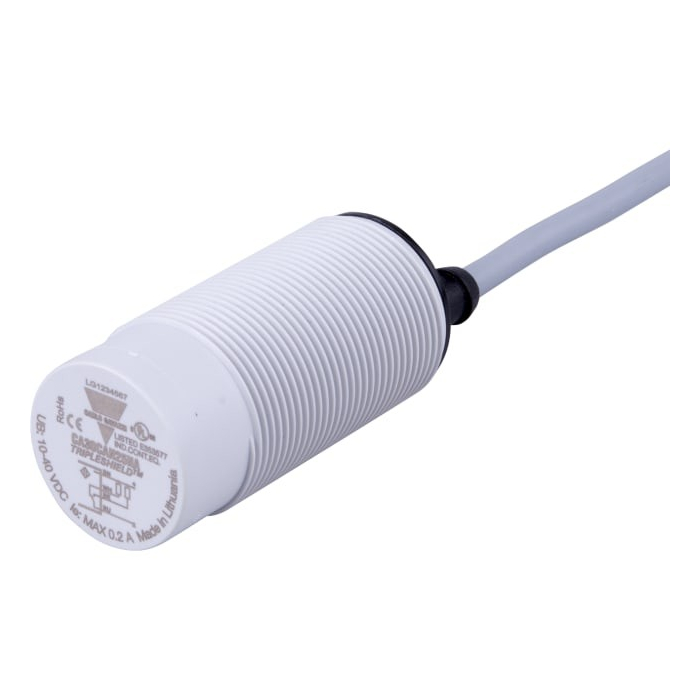

Capacitive sensor, 4th gen. TripleshieldTM, 3-wire, thermoplasticpolyester 0-25 mm unshielded PNP 2M cable NO+NC
42 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
5709870386539
Supplier no.
9623100032
Type no.
CA30CAN25PA
Price per Styk
€126.23
Excl. Tax:
€100.98
Excl. Tax:
Excl. Tax:
Regular Price
€158.08
Min. order 1 Styk
Description / Carlo Gavazzi Kap.aft m30 dc 0-25pnp no/ncuskærmet 2m
Capacitive sensor, 4th gen. TripleshieldTM, 3-wire, thermoplastic
polyester increased EMC and temperature stability dust and humidity compensation dust and temperature alarm output 2 LED, power + output + stability
IP67, IP68, 69K, Nema 1,2,3,4X
polyester increased EMC and temperature stability dust and humidity compensation dust and temperature alarm output 2 LED, power + output + stability
IP67, IP68, 69K, Nema 1,2,3,4X
Link to manufacturer:
Carlo Gavazzi
Carlo Gavazzi
More Information
| Brand | CARLO GAVAZZI |
| Breaking distance | 25 mm |
| Can be connected in series | No |
| Category according to EN 954-1 | B |
| Coil voltage 50HZ | 0 - 0 V |
| Coil voltage AC 60HZ | 0 - 0 V |
| Coil voltage DC | 10 - 40 V |
| Country of origin | LT - Lithuania |
| Description | CA30CAN25PA |
| Diameter sensor | 30 mm |
| EAN number | 5709870386539 |
| EL number | 9623100032 |
| Electrical connection | Kabel |
| Encapsulation surface | Other |
| Enclosure construction type | Cylinder, gevind |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Food contact material | No |
| Height of sensor | 0 mm |
| Material enclosures | Plastik |
| Max. output current at protected output | 200 mA |
| Mechanical built-in for sensors | Ikke skærmet |
| Net weight | 190,00 g / STK |
| Number of outputs with reporting contact | 0 |
| Number of protected contact outputs | 0 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signaling function | 0 |
| Operating voltage range | 10 - 40 V |
| Pack size | 1 |
| Performance level according to EN ISO 13849-1 | None |
| Pressureproof | No |
| Product code | 270118284 |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | No |
| Sensor length | 61 mm |
| Sensor width | 0 mm |
| Series | CA30 |
| SIL according to IEC 61508 | None |
| Stock item | Yes |
| Suitable for security features | No |
| Switching frequency | 50 Hz |
| Type of interface | None |
| Type of interface for secure communication | None |
| Type of operation | Other |
| Type of output signal | PNP/PNP |
| Type of switching function | Antivalent |
| Unit | STK |
| UNSPSC | 39122230 |
| Voltage type | DC |
| With function display | Yes |
| With monitoring function for retroconnected devices | No |
