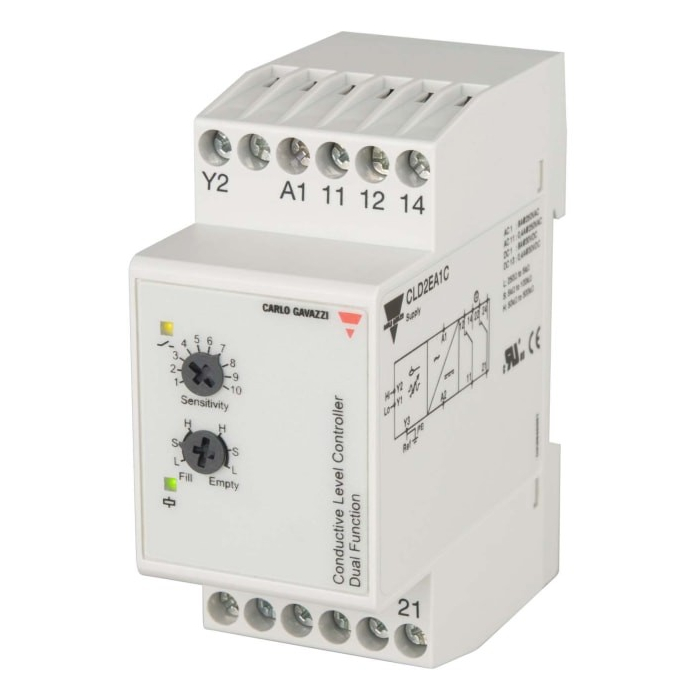

Carlo Gavazzi Niveaurelæ

Input and output pump-out relay adjustable sensitivitycoil voltage 24V AC/DC, 2 pole shift switch set for DIN rail

9 Piece on stock (day-to-day delivery)

EAN 5709870381329

Supplier no. 9624017454

Type no. CLD2EA1CM24

Regular Price €122.09

Min. order 1 Styk

Styk

Description / Carlo Gavazzi Niveaurelæ

Adjustable sensitivity	Yes
Brand	CARLO GAVAZZI
Can be connected in series	No
Coil voltage 50HZ	24 - 24 V
Coil voltage AC 60HZ	24 - 24 V
Coil voltage DC	24 - 24 V
Country of origin	MT - Malta
Depth (mm)	67.2 mm
Description	CLD2EA1CM24
EAN number	5709870381329
EL number	9624017454
Electrical connection	Skrueforbindelse
Food contact material	No
Height (mm)	81 mm
Max. allowable shutdown time delay	1 s
Max. permissible response time	1 s
Min. adjustable response time	1 s
Min. adjustable shutdown delay	1 s
Net weight	136,00 g / STK
Number of break contacts	0
Number of electrode inputs	3
Number of end contacts	0
Number of toggle switches	2
Operating voltage AC 50 Hz	0 - 5 V
Operating voltage AC 60 Hz	0 - 5 V
Operating voltage DC	0 - 0 V
Pack size	1
Physical measuring principle	Konduktiv (ledningsevne)
Product code	270110619
Rated breaking current	8 A
REACH – contains substances from the Candidate List?	No
RoHS compliant	Yes
Series	CLD
Stock item	Yes
Supply voltage AC 50 Hz	19.2 - 28.8 V
Supply voltage AC 60 Hz	19.2 - 28.8 V
Supply voltage DC	19.2 - 28.8 V
Type of supply voltage	AC/DC
Type of voltage (operating voltage)	AC
Unit	STK
UNSPSC	39122308
Voltage type of operation	AC/DC
Width (mm)	36.5 mm
With removable clamps	No
