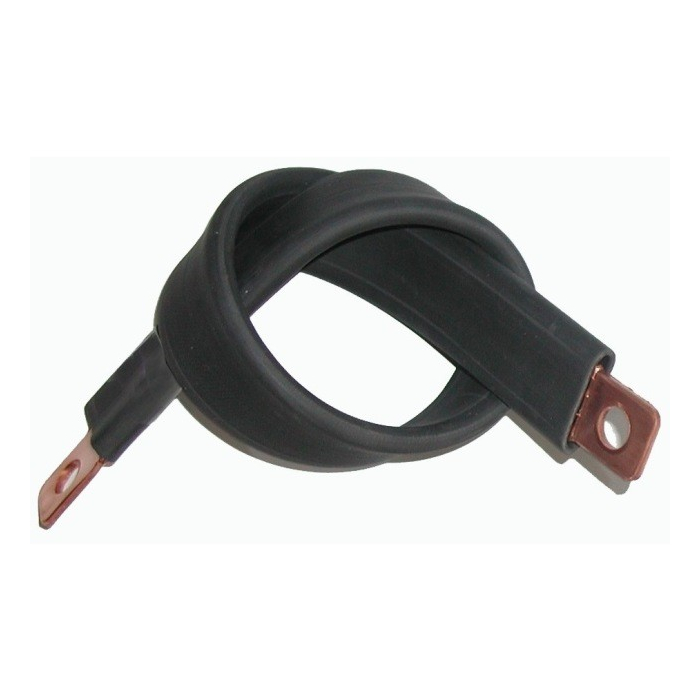

Cubic Cu-flex 25mm2, 800mm, fb25800
Main image
Click to view image in fullscreen
![]()
Cu-flex rated current In 190A 25.2W power loss at 30 gr. length 800 mm, data applicable when connection between CU and function unit
Temporarily out of stock - Expected on stock 03-04-2026
↻
Updating inventory, please wait...
Last Updated:
EAN
5705100079127
Supplier no.
1914135183
Type no.
FB25800
Price per Styk
€16.19
Excl. Tax:
€12.95
Excl. Tax:
Excl. Tax:
Regular Price
€21.33
Min. order 1 Styk
Description / Cubic Cu-flex 25mm2, 800mm, fb25800
Type-tested flexible copper rails.
Cu-flex rails ensure fast and professional execution of electrical connections. The rails are delivered ready to use. Therefore, no time is spent on shortening, stripping, hole taking and elaborate bends.
Cu-flex is made of copper wires that are braided into a flexible rail. Using a patented technique, the ends of the rails are forged into a masïve device. This ensures a well-difenated contact surface that makes it possible to perform maintenance-free joints.
Cu-flex is type tested according to IEC, UL and DNV (Det Norske Veritas) in various application situations.
Furthermore, Cu-flex UL recognizedi is the category ''Component - Panelboard and Switchboard Accessories.
Cu-flex rails ensure fast and professional execution of electrical connections. The rails are delivered ready to use. Therefore, no time is spent on shortening, stripping, hole taking and elaborate bends.
Cu-flex is made of copper wires that are braided into a flexible rail. Using a patented technique, the ends of the rails are forged into a masïve device. This ensures a well-difenated contact surface that makes it possible to perform maintenance-free joints.
Cu-flex is type tested according to IEC, UL and DNV (Det Norske Veritas) in various application situations.
Furthermore, Cu-flex UL recognizedi is the category ''Component - Panelboard and Switchboard Accessories.
Cubic - Cu-flex
- Flexible Copper Rails
More Information
| Conductor surface | Fortinnet |
| Food contact material | No |
| Leader class | Klasse 5 = mangetrådet |
| Leadership form | Flad |
| Leadership material | Cu, blank |
| Nominal conductor cross-section | 25 mm² |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | Yes |
| UNSPSC | 39121465 |
| Wire width | 20 mm |
| Wiring height | 1.5 mm |
