Cubic Cu-flex 50mm2, l=480mm, fb50480

Cu-flex rated current In 295A 19.3W power loss at 30 gr. length 480 mm, data applicable when connecting the CU to the function unit;

66 Piece on stock (day-to-day delivery)

EAN 5705100079202

Supplier no. 1914135264

Type no. FB50480

Regular Price €19.83

Min. order 1 Styk

Styk

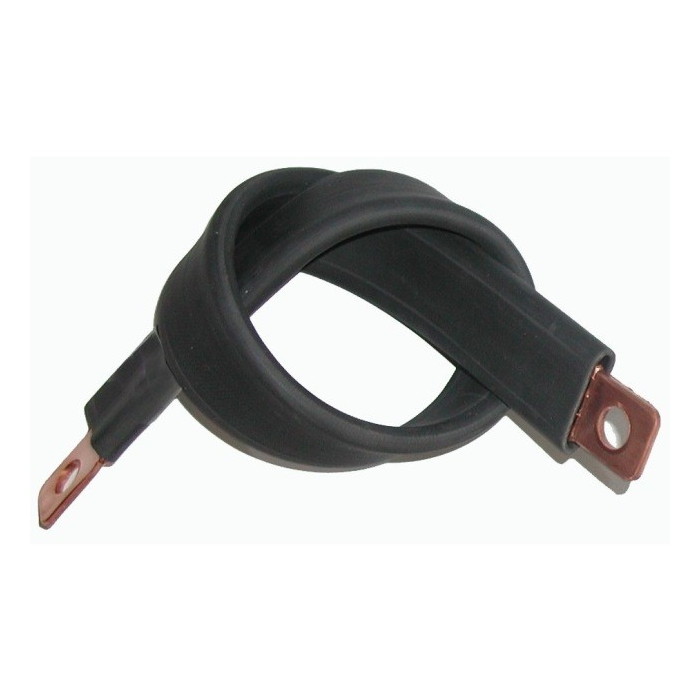

Description / Cubic Cu-flex 50mm2, l=480mm, fb50480

Type-tested flexible copper rails.
Cu-flex rails ensure fast and professional execution of electrical connections. The rails are delivered ready to use. Therefore, no time is spent on shortening, stripping, hole taking and elaborate bends.
Cu-flex is made of copper wires that are braided into a flexible rail. Using a patented technique, the ends of the rails are forged into a masïve device. This ensures a well-difenated contact surface that makes it possible to perform maintenance-free joints.
Cu-flex is type tested according to IEC, UL and DNV (Det Norske Veritas) in various application situations.
Furthermore, Cu-flex UL recognizedi is the category ''Component - Panelboard and Switchboard Accessories.

Cubic - Cu-flex

Flexible Copper Rails

More Information

Connection	Other
Food contact material	No
Number of poles	2
Rated current	295 A
REACH – contains substances from the Candidate List?	No
RoHS compliant	Yes
UNSPSC	32101517
