Dafa Dafa universal cable collar 115 ø3/ø7/ø18
Main image
Click to view image in fullscreen
![]()

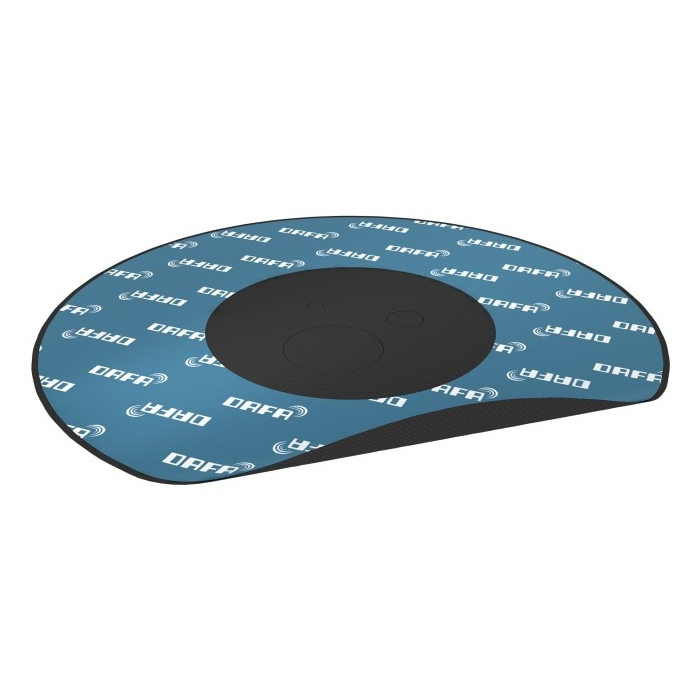

AirVent universal cable cuff 115, Ø115 mm for sealing e.g. vapor barrier and underroof with marking for Ø7-35 mm cable and flex pipe.
190 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
5705636502687
Supplier no.
5478001123
Type no.
620045079
VVS No.
900400645
Price per Styk
€5.74
Excl. Tax:
€4.59
Excl. Tax:
Excl. Tax:
Regular Price
€8.96
Min. order 1 Styk
Description / Dafa Dafa universal cable collar 115 ø3/ø7/ø18
The DAFA universal cable cuff 115 is part of the DAFA AirVent System and is an airtight solution for routing cables in underroofs, wind barriers and pond barriers.
Application
DAFA universal cable cuff 115 is used for sealing around cable penetrations through the underroof or wind barrier.
The cable collar ensures complete tightness, and the simple installation makes it quick and safe to carry out the sealing work.
Execution
Before installing the cable cuff, a solid substrate must be established on which the pond barrier and cable collar can be mounted with tight joints. The substrate can be made of formwork or 15 mm plywood.
The penetration must be attached to the structure.
Product benefits
- DAFA universal cable cuff 115 is included in Nordic Ecolabelling's database for building products that can be used in Nordic Ecolabelled construction.
- Patented solution
- Energy saving due to tight penetrations/joints
- Only one flexible gasket for many common cable dimensions
- Simple, fast and safe installation
- No special tools required
- Mounted without subsequent use of sealing, glue, grouting etc.
- Both EPDM cloth and adhesive are usable from -40 ºC to +80 ºC.
Application
DAFA universal cable cuff 115 is used for sealing around cable penetrations through the underroof or wind barrier.
The cable collar ensures complete tightness, and the simple installation makes it quick and safe to carry out the sealing work.
Execution
Before installing the cable cuff, a solid substrate must be established on which the pond barrier and cable collar can be mounted with tight joints. The substrate can be made of formwork or 15 mm plywood.
The penetration must be attached to the structure.
Product benefits
- DAFA universal cable cuff 115 is included in Nordic Ecolabelling's database for building products that can be used in Nordic Ecolabelled construction.
- Patented solution
- Energy saving due to tight penetrations/joints
- Only one flexible gasket for many common cable dimensions
- Simple, fast and safe installation
- No special tools required
- Mounted without subsequent use of sealing, glue, grouting etc.
- Both EPDM cloth and adhesive are usable from -40 ºC to +80 ºC.
More Information
| Airtight | Yes |
| Brand | DAFA |
| Description | 620045079 |
| EAN number | 5705636502687 |
| EL number | 5478001123 |
| Food contact material | No |
| Form | Rund |
| Length (mm) | 115 mm |
| Outer pipe diameter | 35 mm |
| Pack size | 50 |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | Yes |
| Soundproofing | No |
| Stock item | Yes |
| Unit | STK |
| UNSPSC | 31162313 |
| Width (mm) | 115 mm |
| With cuff | No |
| With pre-punched marking | Yes |
| With rosette | No |
