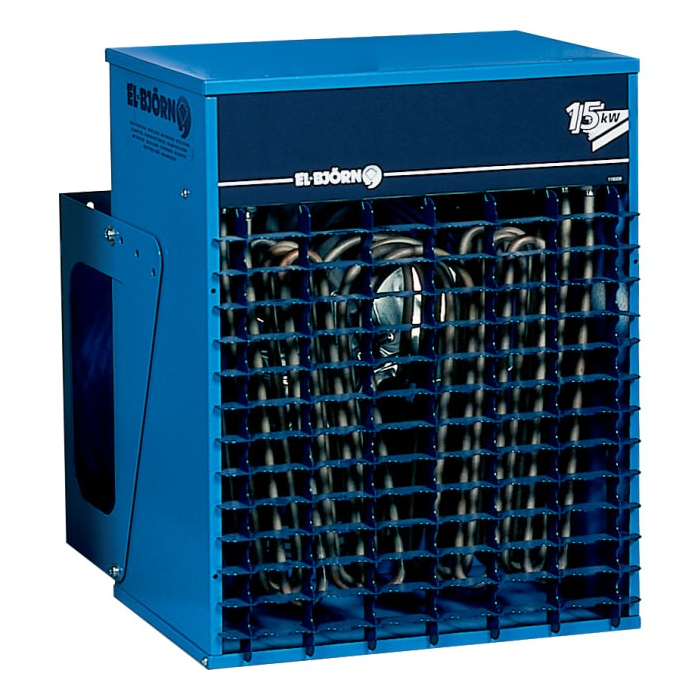

El-bjørn Varmeblæser fast montage vf15f2

Use

Electric bear stationary fan heaters are intended for fixed mounting on the wall using wall brackets, which are supplied. The housing is made of corrosion-resistant, powder-coated aluzinc sheets. It is possible to adjust the air direction to 20° downwards.
VF 9F2 and VF 15F2 are used in dry, damp and wet rooms such as workshops, warehouses, washing and spray rooms, but are not intended for flammable and explosive environments.
VFBR 9F2 can also be installed in flammable rooms in e.g. the textile and woodworking industries and stables.
All types are in protection class IP55 and are equipped with a temperature sensor that protects against overheating.
The fan heaters must be installed with separate thermostat and switch boxes to achieve the desired function.

Governance and regulation:
For the regulation of the fan heaters, external switch and thermostat boxes are provided, which must be ordered separately.
For VFBR 9F2, switch box OKB 55-1 is used.
For VF 9F2 and VF 15F2, switch box OKB 55-2 is used.

For all types, thermostat box TB 55-1 is used, where the temperature can be regulated from 5-35° C.

If the thermostat box is not selected, the terminals for the thermostat can be connected and the fan heater will constantly run with heat when it is in operation.

• Fixed assembly
• Wall bracket included
• CE marked
• IP 55
