Geberit Tee 18mm cu mapress
Main image
Click to view image in fullscreen
![]()

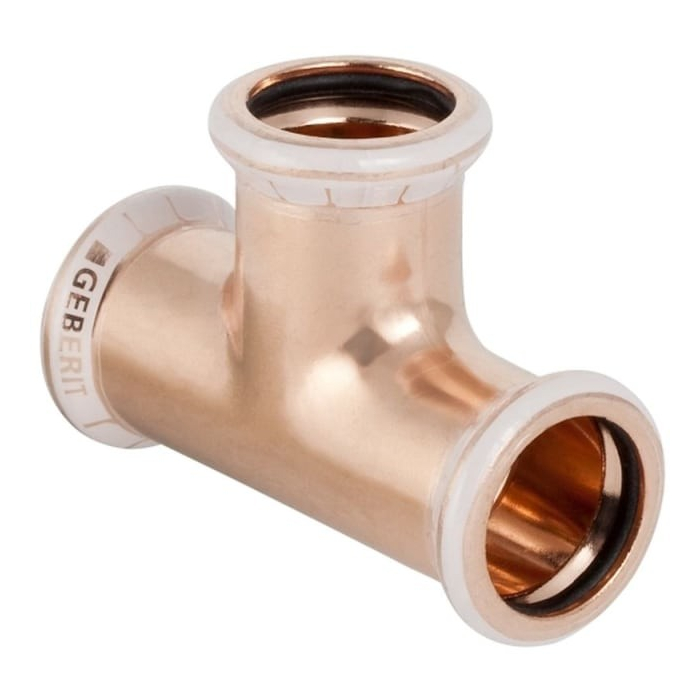

TEE 18MM CU MAPRESS
130 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
4024723610038
Supplier no.
0802045409
Type no.
61003
Price per Styk
€7.63
Excl. Tax:
€6.10
Excl. Tax:
Excl. Tax:
Regular Price
€39.73
Min. order 1 Styk
Description / Geberit Tee 18mm cu mapress
More Information
| Actual length of connection 3 | 14 mm |
| Angle | 90 ° |
| Angle adjustable | No |
| Angular range | 90 - 90 ° |
| Brand | GEBERIT |
| Connection 1 | Pres system |
| Connection 2 | Pres system |
| Connection 3 | Pres system |
| Contactor current | No |
| Contactor voltage | DN15 |
| Contour code | M |
| Contour code connection 1 | M |
| Contour code connection 3 | M |
| Description | 61003 |
| Dimension connection 1 | DN15 |
| EAN number | 4024723610038 |
| EC-numbers | 204‑327‑1 |
| External pipe diameter connection 1 | 18 mm |
| External pipe diameter connection 2 | 18 mm |
| External pipe diameter connection 3 | 18 mm |
| Flow type | Yes |
| FM examination | No |
| Food contact material | No |
| Fuse rating | Yes |
| Gas permit QA | No |
| Gaskets | CIIR |
| KIWA certified | Yes |
| Length connection 1 | 32 mm |
| Length connection 2 | 32 mm |
| Longitudinal connection 3 | 32 mm |
| LPCB study | No |
| Main color fitting | Other |
| Material connection 1 | Kobber |
| Material connection 2 | Kobber |
| Material connection 3 | Kobber |
| Material quality 3 | Cu-DHP (CW024A) |
| Material quality connection 1 | Cu-DHP (CW024A) |
| Material quality connection 2 | Cu-DHP (CW024A) |
| Maximum mean temperature (continuous) | 120 °C |
| Maximum working pressure at 20 gr. C | 16 bar |
| Minimum medium temperature (continuous) | -20 °C |
| Multi-part | No |
| Nominal diameter connection 1 | DN15 |
| Nominal diameter connection 2 | DN15 |
| Outline code connection 2 | M |
| Pack size | 20 |
| REACH – contains substances from the Candidate List? | Yes |
| Real working length connection 1 | 14 mm |
| Real working length connection 2 | 14 mm |
| Reducing | No |
| RoHS compliant | Yes |
| Series | Mapress |
| Stock item | Yes |
| Surface protection connection 1 | Ubehandlet |
| Surface protection connection 2 | Ubehandlet |
| Surface protection connection 3 | Ubehandlet |
| Surface treatment compound 3 | Ubehandlet |
| Surface treatment connection 1 | Ubehandlet |
| Surface treatment connection 2 | Ubehandlet |
| System bound | Yes |
| Tensile resistant | Yes |
| Type | T-stykke |
| UL study | No |
| ULC color | No |
| Unit | STK |
| UNSPSC | 40172601 |
| VVS number | 045532018 |
| With bottling | No |
| With sealing rings / gaskets | Yes |
| With stop buffer | Yes |
| With termic insulation | No |
| With vent | No |
