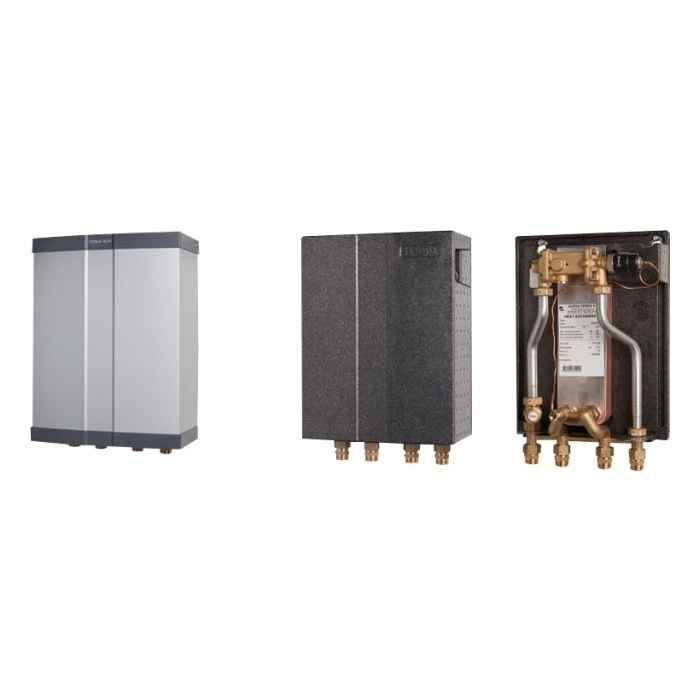

Gemina Termix novi type 2 m/kabinet

Use

REGULATION WITH THERMOSTATIC OVERRIDE:The

intelligent Termix TPV regulates domestic water in relation to both flow and temperature. A tap flow opens the valve, after which the thermostat regulates the domestic water temperature.

The regulation is independent of varying flow temperatures and differential pressures.

When bottling ceases, the valve closes immediately, thereby protecting the heat exchanger from calcification.

BUILT-IN IDLE FUNCTION:When not bottling, the idle function automatically adjusts below the selected domestic hot water temperature,

so that the water heater is always ready to produce domestic hot water.

The idle function is built into the Termix TPV and does not require any post-regulation.

This will always set the idle temperature correctly and energy consumption will therefore be kept to a minimum. Furthermore, a low return temperature is ensured even when stationary.

SUITABLE FOR LOW TEMPERATURE OPERATION:The

Termix TPV controller ensures well-regulated domestic water at both low and high flow temperatures.

Termix TPV also guarantees maximum comfort with minimal energy consumption. It is thus the perfect choice in low-temperature district heating networks and residential areas in the outlying areas of district heating.

MINIMAL HEAT LOSS:

A complete full insulation of the water heater ensures minimal heat loss both during tapping and idle mode.

HIGH CAPACITY:

The Termix Novi water heater has a compact and efficient Termix 16H+ exchanger. It is distinguished by a very low pressure drop and efficient cooling of the district heating water, which provides a high domestic water capacity covering
from 1 to 4 apartments - depending on the type. NOTE SEE DATA SHEET!!

ECO-FRIENDLY COMFORT - NO WATER WASTE:The
intelligent Termix TPV controller ensures that the water heater is always ready to produce domestic hot water

Domestic water supply with top-class operating economy

• Termix Novi is an efficient water heater with several energy-saving properties.
• The intelligent Termix TPV controller ensures optimal comfort with minimal energy consumption
• Fully insulated
• Stylish cabinet in Jacob Jensen design
• Exchanger: Stainless AISI 316
• Test pressure exchanger: 25 bar
• Working pressure: 16 bar
• Min. cold water pressure: 1 bar
• Valve type: Termix TPV 90
• Operating temperature: Max. 120 °C
• VA approval: VA 3.22/19700
• Solder: Copper
• All pipe connections in 3/4'' exv. pipe thread
• Weight: 7-9 kg
• Dimensions with insulation: h 432 x w 300 x d 155 mm
• Dimensions with chassis: h 442 x w 315 x d 165 mm
