GF t-stykke galv. 2x1/2

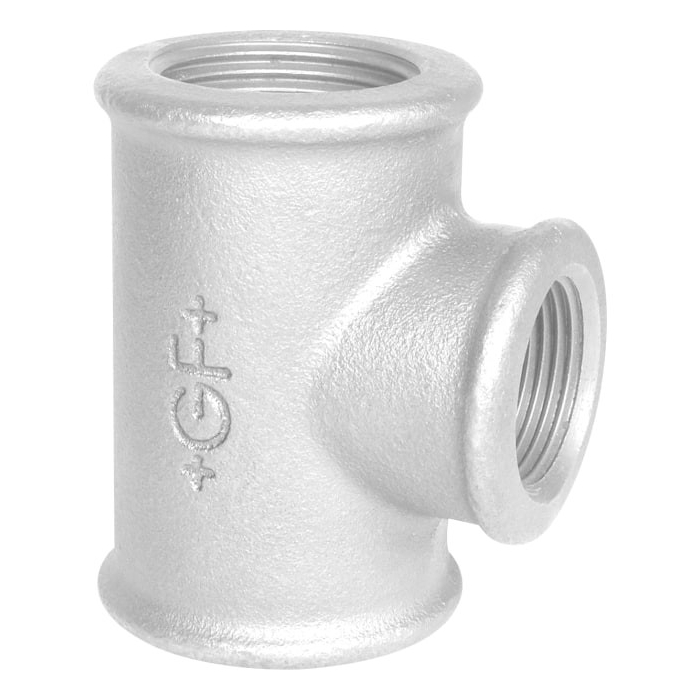

Main image
Click to view image in fullscreen
![]()
2 - 1/2 galvanized tee
8 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
7611205414665
Supplier no.
0201136760
Type no.
130463
VVS No.
000130463
Price per Styk
€16.23
Excl. Tax:
€12.98
Excl. Tax:
Excl. Tax:
Regular Price
€53.93
Min. order 1 Styk
Description / GF t-stykke galv. 2x1/2
Use
Soft cast fittings 00 0001 - 000 341 meet the requirements of ISO 49-DS/EN 10242. Available in black and hot-dip galvanized version. Hot dip galvanizing is carried out with min. 500 g/m2 of zinc Zn 99.9 according to DS/EN 10242. Pipe thread made according to DS/ISO 7-1 DS/EN 10266-1. External threads are conical (Increase 1:16), internal threads cylindrical.
More Information
| Angle | 90 ° |
| Angle adjustable | No |
| Angular range | 90 - 90 ° |
| Brand | GF GEORG FISCHER |
| Connection 1 | Indvendigt Rørgevind konisk (NPT) |
| Connection 2 | Indvendigt Rørgevind konisk (NPT) |
| Connection 3 | Indvendigt Rørgevind konisk (NPT) |
| Contactor voltage | 2"" |
| Contour code | Other |
| Contour code connection 1 | Other |
| Contour code connection 3 | Other |
| Description | 130463 |
| Dimension connection 1 | 2"" |
| EAN number | 7611205414665 |
| External pipe diameter connection 1 | 60.8 mm |
| External pipe diameter connection 2 | 21.8 mm |
| External pipe diameter connection 3 | 60.8 mm |
| Flow type | No |
| FM examination | No |
| Food contact material | No |
| Fuse characteristics | 25 bar |
| Fuse rating | No |
| Gas permit QA | No |
| Gaskets | Ikke relevant |
| Key width | 0 mm |
| Key width on nut | 0 mm |
| KIWA certified | No |
| LPCB study | No |
| Main color fitting | Other |
| Material connection 1 | Støbejern |
| Material connection 2 | Stål |
| Material connection 3 | Stål |
| Material quality 3 | Other |
| Material quality connection 1 | Other |
| Material quality connection 2 | Other |
| Maximum mean temperature (continuous) | 125 °C |
| Maximum working pressure at 20 gr. C | 25 bar |
| Mean temperature (continuous) | 0 - 125 °C |
| Minimum medium temperature (continuous) | 0 °C |
| Multi-part | No |
| Nominal diameter connection 2 | 1/2"" |
| Outline code connection 2 | Other |
| Pack size | 5 |
| Pressure stage flange | PN 25 |
| REACH – contains substances from the Candidate List? | No |
| Reducing | Yes |
| Ring stiffness class | Other |
| RoHS compliant | Yes |
| Standard dimension ratios (SDRs) | 0 |
| Standard flange | Other |
| Stock item | Yes |
| Surface protection connection 1 | Galvanisk/elektrolytisk zinkbelagt |
| Surface protection connection 2 | Galvanisk/elektrolytisk zinkbelagt |
| Surface protection connection 3 | Galvanisk/elektrolytisk zinkbelagt |
| Surface treatment compound 3 | Other |
| Surface treatment connection 1 | Other |
| Surface treatment connection 2 | Other |
| System bound | Yes |
| Tensile resistant | No |
| Type | T-stykke |
| UL study | No |
| ULC color | No |
| Unit | stk |
| UNSPSC | 40172601 |
| VdS-controlled | No |
| VVS number | 000130463 |
| Wall thickness connection 1 | 1 mm |
| Wall thickness connection 2 | 1 mm |
| Wall thickness connection 3 | 1 mm |
| With bottling | No |
| With sealing rings / gaskets | No |
| With stop buffer | Yes |
| With vent | No |
