GF vinkel sort mf/np 90gr 1 1/2
Main image
Click to view image in fullscreen
![]()

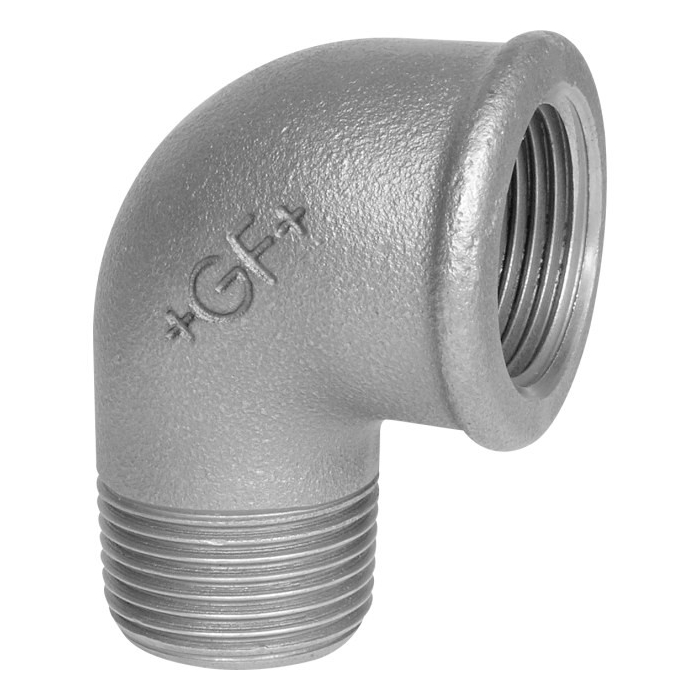

11/2 black angle 90 degrees sleeve/nipple
36 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
7611205308100
Supplier no.
0201135020
Type no.
92111
VVS No.
000092111
Price per Styk
€9.58
Excl. Tax:
€7.66
Excl. Tax:
Excl. Tax:
Regular Price
€31.88
Min. order 1 Styk
Description / GF vinkel sort mf/np 90gr 1 1/2
Use
Soft cast fittings 00 0001 - 000 341 meet the requirements of ISO 49-DS/EN 10242. Available in black and hot-dip galvanized version. Hot dip galvanizing is carried out with min. 500 g/m2 of zinc Zn 99.9 according to DS/EN 10242. Pipe thread made according to DS/ISO 7-1 DS/EN 10266-1. External threads are conical (Increase 1:16), internal threads cylindrical.
More Information
| Bend angle | 90 ° |
| Brand | GF GEORG FISCHER |
| Connection 1 | Indvendigt Rørgevind konisk (NPT) |
| Connection 2 | Udvendigt Amerikansk rørgevind konisk (NPT) |
| Description | 92111 |
| Dimension connection 1 | 1½"" |
| EAN number | 7611205308100 |
| External pipe diameter connection 1 | 48.8 mm |
| External pipe diameter connection 2 | 48.8 mm |
| Food contact material | No |
| Form | Bøjning |
| Gaskets | Ikke relevant |
| Length connection 1 | 19 mm |
| Length connection 2 | 19 mm |
| Material connection 1 | Støbejern |
| Material connection 2 | Støbejern |
| Material quality connection 1 | Støbejern |
| Material quality connection 2 | Støbejern |
| Maximum mean temperature (continuous) | 300 °C |
| Maximum working pressure at 20 gr. C | 25 bar |
| Nominal diameter connection 2 | 1½"" |
| Pack size | 20 |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | Yes |
| Stock item | Yes |
| Surface protection connection 1 | Ubehandlet |
| Surface protection connection 2 | Ubehandlet |
| Surface treatment connection 1 | Ubehandlet |
| Surface treatment connection 2 | Ubehandlet |
| Type | 1-stykke |
| Unit | stk |
| UNSPSC | 40172601 |
| VVS number | 000092111 |
