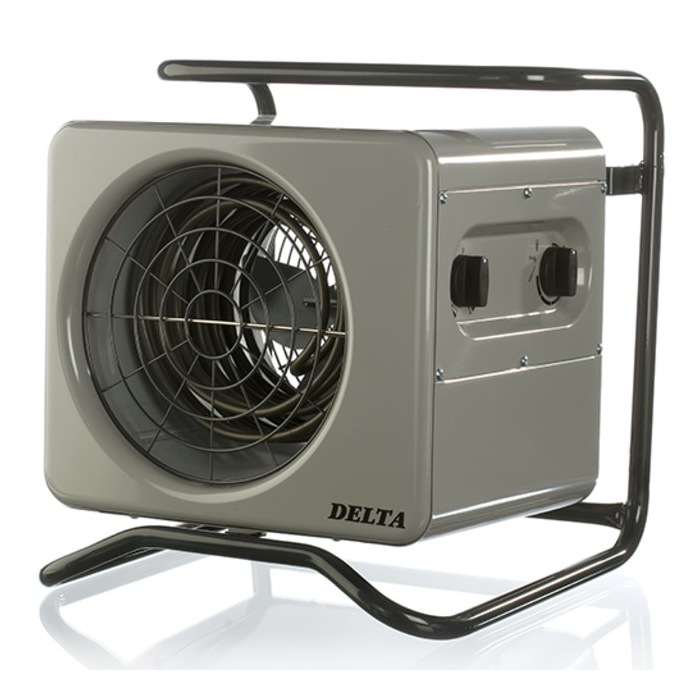

Jevi Delta 15kw varmeblæser 400v tp2 m/timer

Use

The DELTA 400V TP2 with timer is a robust and reliable 15 kW fan heater designed for use in areas where little extra is required, where there are stricter requirements for durability, materials and performance.

The fan heater can be used on construction sites and ships, as well as for more permanent installation in industrial, sports and warehouse halls, garages, outbuildings, workshops and other premises where water, moisture or cold must be removed quickly and efficiently.

It is available in two different sizes:
- TP1 = 3-9 kW - small cabinet- TP2 = 15-21 kW - large cabinet

Item no. with subsequent ''T'' is the DELTA fan heater incl. timer function.

It comes with a built-in 0-40°C room thermostat, which ensures optimal operation and minimizes energy consumption, as well as a thermal protection against overheating.

TECHNICAL DATA
Voltage range: 1x110V to 3x690V + PE
Frequency, can be used at: 50 Hz and 60 Hz
Density class of electrical components:- TP1: 3-9kW = IP44- TP2: 15-21kW = IP34


Temperature control:- TP1: combination thermostat with adjustable room thermostat 0-40°C +
built-in thermal fuse- TP2: Adjustable room thermostat 0-40°C + built-in thermal fuse


Step control:


- All types come with a manually operated 5-speed switch that regulates air velocity and heat output.
Moreover, all types can be supplied with a 24-hour timer function.
A DELTA fan heater with timer function turns on when the set time has elapsed.

DELTA is made of electrolytic galvanized sheet, which is surface treated with a 20 my powder coating in RAL color 7004
(light gray).
For larger numbers, the fan heaters can be supplied in other colors or paintwork

Supplied with:
- mounted floor stand
- 1.75 meter cable (TP1 with cable relief / TP2 with plastic gland PG21)- plug for 1x230V and CEE plug for 3x400V (all other voltages supplied without plug)


The DELTA fan heater is portable as standard, but can be changed to fixed, by purchasing wall brackets.

The fan heater works without standby function and does not consume unnecessary power.
