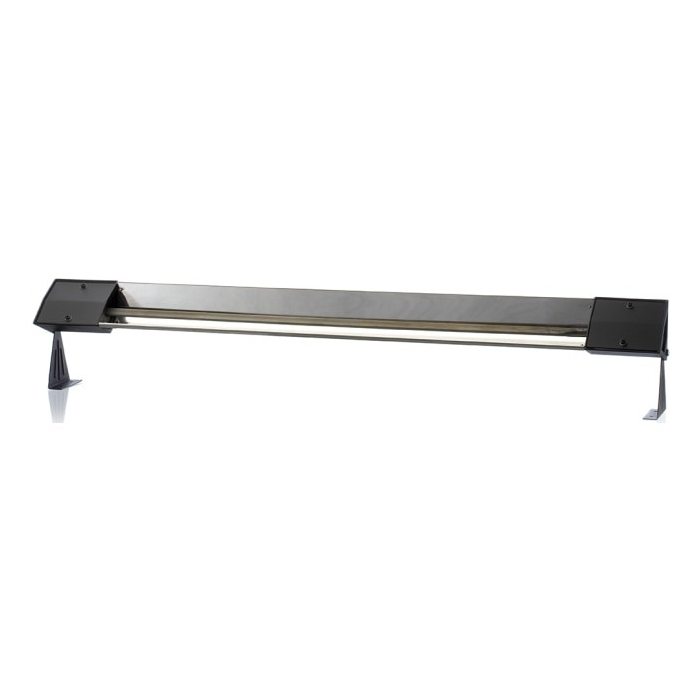

Jevi Infratemper ihs-150 1500w/230v

Use

IHS INFRATEMPER is made of stainless steel and surface treated aluminium. The IHS series is approved as radiation-proof and can therefore also be used in premises where radiation-tight design is required, e.g. in fish and canning factories, dairies and slaughterhouses.
Both the faucet and reflector are made of stainless steel. End caps and cover in cast aluminum.
The luminaire can be connected to both 230 V and 400 V, where the power is switched on the terminals. The heater temperature is approx. 750°C. The angle of dispersion of the reflectors is approximately 60°.

INFRATEMPER radiant furnaces are an economical and appropriate form of heating due to the special properties of infrared rays. The rays do not heat the air, but only the objects or people hit by the heat rays.
INFRATEMPER is therefore suitable for outdoor heating. With proper installation and placement of the radiant stove, you can enjoy your stay on your terrace or in the conservatory despite an air temperature of down to 12°C.

Radiant stoves are also suitable and economical to use indoors for local heating in rooms where you only need to stay for a short time, e.g. hobby rooms or point heating of workplaces.
The luminaires are positioned so that only the living space itself is heated. If possible, it would be an advantage to place the luminaires so that the heat comes from the coldest direction, e.g. so that the heat is directed towards the house wall on a terrace.
The required power depends on the suspension height, air temperature and duration of stay. That is, the higher the suspension height, the lower the temperature and the longer the residence time, the greater the power required.
At a suspension height of 2 m, 15°C air temperature and 2 hours residence time, a power of 500-750 W/m² is used.

Mounting distances:-For roof mounting under overhangs: min. 25 cm to wall-For wall mounting in corner: min. 15 cm to ceiling and 25 cm wall-Suspension

height: min. 1,80 m above floor-Free
space:
min. 1 m in beam direction

• Approved as beamproof IP 55
• One heater - MONOSTRIP
• Brackets for ceiling and wall mounting included
• Comes with PG 13.5 cable gland
