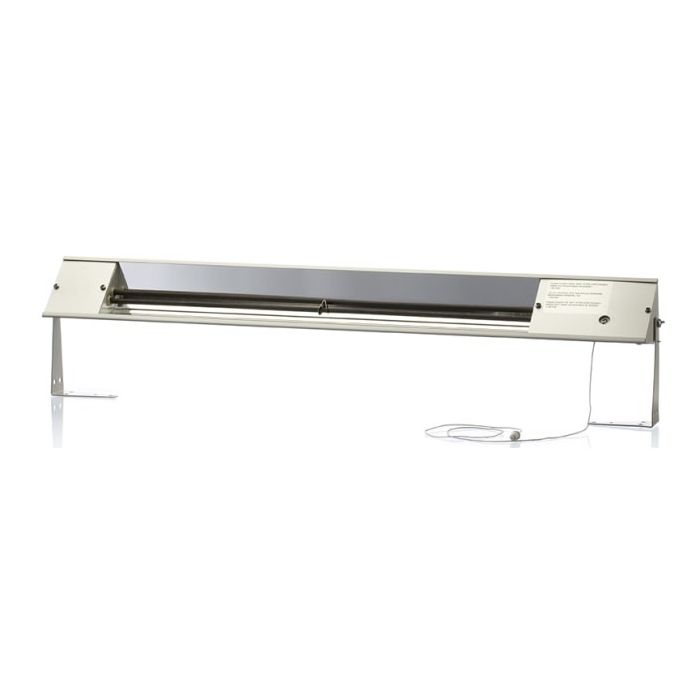

Jevi Infratemper ta-r100 1000w/230v

Use

TA-R INFRATEMPER is an adjustable radiant heater that is especially suitable in places where you want to regulate the effect.
The two heating elements in connection with the built-in switch allow regulation of the heat in 1/4, 1/2 and full power and are therefore particularly economical in use.
The radiant heater is made of electrically galvanized steel sheet and surface treated with polyester powder coating in white color. The reflector is made of highly polished, anodized aluminium.

INFRATEMPER Radiant furnaces are an economical and appropriate form of heating due to the special properties of infrared rays. The rays do not heat the air, but only the objects or people hit by the heat rays.
INFRATEMPER is therefore suitable for outdoor heating. With proper installation and placement of the radiant stove, you can enjoy your stay on your terrace or in the conservatory despite an air temperature of down to 12°C.

Radiant stoves are also suitable and economical to use indoors for local heating in rooms where you only need to stay for a short time, for example hobby rooms or spot heating of workplaces.
When used for a long time, the radiant stove itself, as well as the objects that have been heated, will give off heat to the air in the room.

The luminaires are positioned so that only the living space itself is heated. If possible, it would be an advantage to place the luminaires so that the heat comes from the coldest direction, e.g. so that the heat is directed towards the house wall on a terrace.

The required power depends on the suspension height, air temperature and duration of stay. That is, the higher the suspension height, the lower the temperature and the longer the residence time, the greater the power required.
At a suspension height of 2 m, 15°C air temperature and 2 hours residence time, a power of 500-750 W/m² is used.

Mounting distances:-For roof mounting under overhangs: min. 25 cm to wall-For wall mounting in corner: min. 15 cm to ceiling and 25 cm wall-Suspension

height: min. 1,80 m above floor-Free
space:
min. 1 m in radiant ethnin

• Particularly suitable for installation in bathrooms
• Splashproof IP44
• Great durability
• Two heaters
• Wall mounting brackets included - do not mount on ceiling
