Kaiser Dåse brandtæt ø74mm hwd 90 f30-90
Main image
Click to view image in fullscreen
![]()

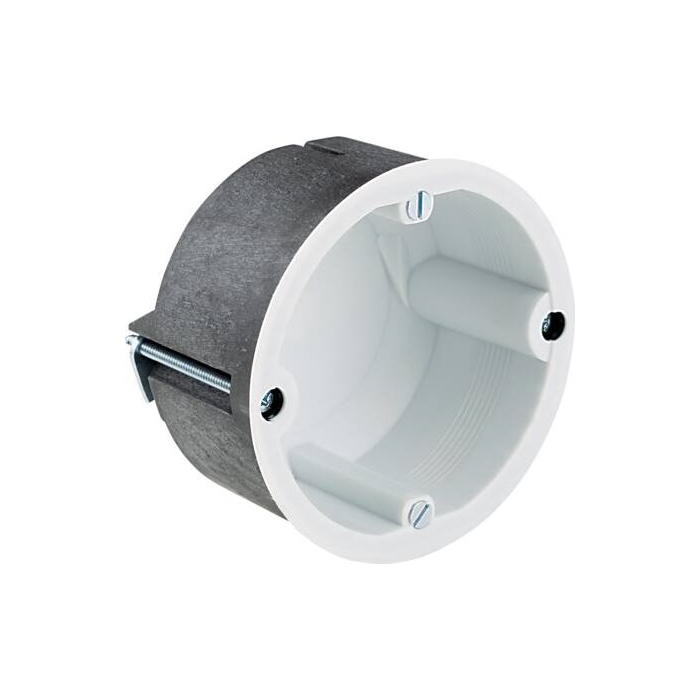

Can 9463-01 Ø74 mm height 44 mm HWD 90 F30-90 halogen free
6 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
4013456531659
Supplier no.
7920001357
Type no.
9463-01
Price per Styk
€30.51
Excl. Tax:
€24.41
Excl. Tax:
Excl. Tax:
Regular Price
€37.75
Min. order 1 Styk
Description / Kaiser Dåse brandtæt ø74mm hwd 90 f30-90
Fireproof junction box for walls F30 - F90. Front wall thickness: 7-40mm. Hole: Ø74mm. Depth: 54.5mm DiBt approval: Z-19.21-1788
More Information
| Ceiling hook fastening | No |
| Colour | Sort |
| Cover | None |
| Cover fastening | Skruet |
| Cover model | None |
| Depth (mm) | 44 — 44 mm |
| Diameter (mm) | 74 mm |
| Equipped with swivel ring | No |
| Fitted with | None |
| Fixed clamp | No |
| Food Contact Material | No |
| For number of appliance inserts | 1 |
| For pipe diameter | Other |
| Form | Rund |
| Halogen-free | Yes |
| House penetration by exit form | No |
| Housing penetration through nozzle | No |
| Housing penetration through phased membrane | No |
| Housing penetration through sealing membrane | No |
| Input from the back | Yes |
| Installation method | Hulvæg |
| Installation of appliance | Skrue |
| Interconnectable | Yes |
| Interior depth | 44 mm |
| Max. conductor cross-section | 2,5 mm² |
| Number of entries | 2 |
| Number of poles pinched | 0 |
| Number of spouts delivered | 0 |
| Performance | E 30 |
| Pipe closure | No |
| Pipe locking optional | No |
| Ports, form factor | Apparatdåse |
| Protection class (IP) | IP3X |
| REACH | No |
| Sealable | No |
| Special application | Brandsikring |
| Stud/nozzle | Tunnelforgreningsrør |
| Suitable for cable diameter | 0 — 0 mm |
| Surface protection | Ubehandlet |
| Transparent cover | No |
| Type | Enkelt |
| Windproof | No |
| With nail fastening | No |
| With screws | No |
| With shielding | No |
