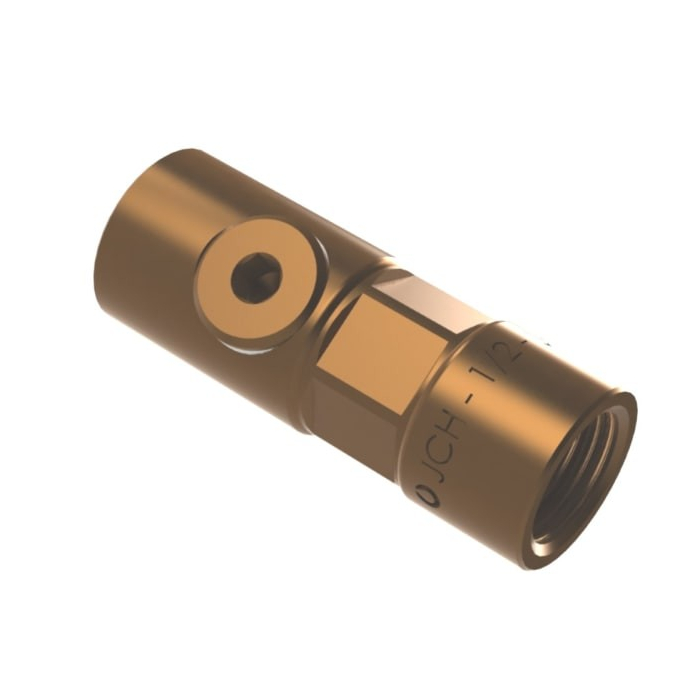

Kontraventil kontrollerbar rødgods 1.½''

Use

Check valve controllable red goods 1.1/2'' PN10. Max temperature 90° C.

Danish produced JCH Model 2280 Ball in POM, sealing ring in PTFE

Total length 100mm


Red goods are used with all pipe materials and fittings. Secured against corrosion in all legal water qualities in Denmark. When installing type 2280, backflow protection is ensured for medium category 2 in accordance with EN 1717 and pipe centre instruction 015.
The compact design with easily accessible control plug ensures a quick installation wherever the backflow protection is
required in new as well as existing water installations

• Product description:
• House machined in CC499K.
• Stopper in Rødgods CC499K.
• The materials are approved according to 4MS UBA list 8th Revision 01.12.2017.
• Check valve insert.
• Certificates/Tests:
• GDV approved, cert. 03/00122.
• Tested according to NKB9 and EN/DS 13959.
• 100% quality test.
• Annual inspection by the Danish Technological Institute.
• Technical data
• Low opening pressure.
• Max temperature 90°C
• Working pressure 10 bar (tested at 16 bar).
