Ledning 3g0,75 h05vv-f,hv 50rg
Main image
Click to view image in fullscreen
![]()

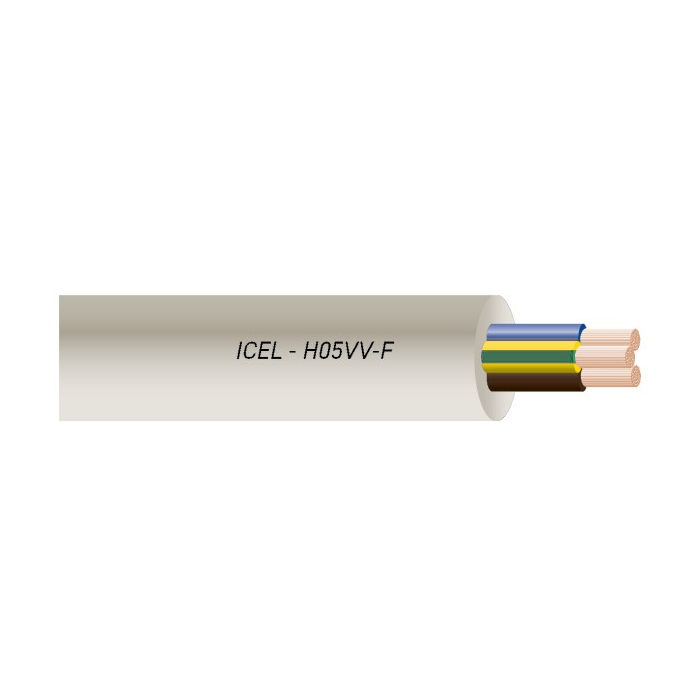

Circular cable, pvc3G0,75 mm² H05VV-F white 300/500Vring, cable diameter 7,6 mm
21200 Meter on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
5705152300453
Supplier no.
5432520690
Type no.
H05VV-F
Price per Meter
€7.40
Excl. Tax:
€5.92
Excl. Tax:
Excl. Tax:
Min. order 50 Meter
Description / Ledning 3g0,75 h05vv-f,hv 50rg
Application
Used indoors as a supply for lighting and utility items, etc.
Construction standard
CENELEC HD 21.5. S3. IEC 60227-5, HAS
Fire safety specifications
IEC60332-1
Construction
Conductor Fine-threaded copper
Insulation PVC, lead-free
Outer jacket PVC lead-free , coloured
Conductor marking
2 conductor Blue, brown
3 conductor Green/yellow, blue, brown
4 conductor Green/yellow, brown, black, black, grey
5 conductors Green/yellow, blue, brown, black, grey
Electrical specifications
Rated voltage 300/500 V
Test voltage 2000 V AC
Conductor temperature Max. 60 °C
Short circuit temperature Max. 150 °C
Mechanical specifications
Permissible draft Max. 15 N/mm²
Temperature fixed Max. 40 °C
Handling temperature Max. 5 to +40 °C
Bending radius Max. 4 x D
Used indoors as a supply for lighting and utility items, etc.
Construction standard
CENELEC HD 21.5. S3. IEC 60227-5, HAS
Fire safety specifications
IEC60332-1
Construction
Conductor Fine-threaded copper
Insulation PVC, lead-free
Outer jacket PVC lead-free , coloured
Conductor marking
2 conductor Blue, brown
3 conductor Green/yellow, blue, brown
4 conductor Green/yellow, brown, black, black, grey
5 conductors Green/yellow, blue, brown, black, grey
Electrical specifications
Rated voltage 300/500 V
Test voltage 2000 V AC
Conductor temperature Max. 60 °C
Short circuit temperature Max. 150 °C
Mechanical specifications
Permissible draft Max. 15 N/mm²
Temperature fixed Max. 40 °C
Handling temperature Max. 5 to +40 °C
Bending radius Max. 4 x D
More Information
| Aid element | None |
| AWG size | 20 |
| Cold resistant according to EN 60811-504 + 505 + 506 | No |
| Color outer sheath | White |
| Conductor insulation | PVC |
| Conductor marking | Farve |
| Conductor surface | Blank |
| Couple building | No |
| Fire retardant | Iht. IEC/EN 60332-1-2 |
| Food contact material | No |
| Form | Rund |
| Halogen-free (according to EN 60754-1 / 2) | No |
| Individual display | None |
| Leader class | Klasse 5 = mangetrådet |
| Leadership material | Kobber |
| Low smoke generation according to EN 61034-2 | No |
| Nominal conductor cross-section | 0.75 mm² |
| Number of managers | 3 |
| Oil resistant (IEC 60811 to 404) | No |
| Outer diameter | 7.6 mm |
| Outer jacket material | PVC |
| Protection manager | Yes |
| REACH – contains substances from the Candidate List? | No |
| Reaction class fire according to EN 13501-6 | Eca |
| RoHS compliant | Yes |
| Screen | No |
| Screen over foil | None |
| Torsion protection | No |
| UNSPSC | 26121641 |
| With protective conductor | Yes |
