Ledvance Fl max 155000lm 1200w 757 10°

Flexibility, power and stability are the core values when, for example, a stadium, a large construction site or a hangar is to be lit up. This is where LEDVANCE has the right solution. The Floodlight MAX series from LEDVANCE consists of high-performance LED floodlights, which are particularly suitable for semi-professional stadium lighting and large outdoor areas such as airfield lighting, outdoor workplaces or sports areas. The luminaires can withstand Danish wind and weather and at the same time are so flexible that it can be used practically anywhere.

Optical properties

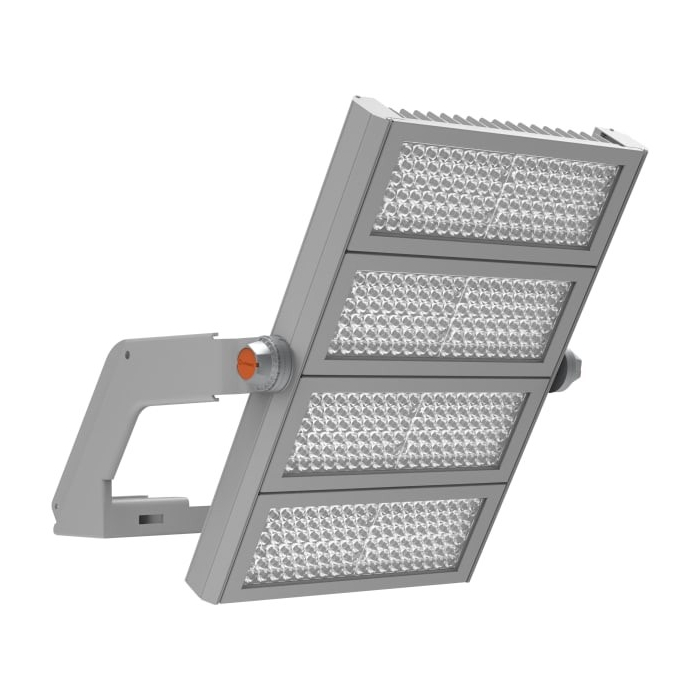

The luminaires are built up of flexible modules with an output of 300 watts/41,000 lumens each, where the smallest model comes with two modules, and the largest with four modules - up to 164,000 lumens. In addition to being extremely powerful, the luminaire also comes with four different opticians that cover most needs: symmetrical 10°, 30° and 60° as well as asymmetrical 50° x 110°.

The Floodlight MAX comes with 5700 Kelvin color temperature, which gives a clear, white light. For the luminaire, a high-quality driver has been developed, which also ensures that the flicker level reaches a maximum of 5%, guaranteeing perfect conditions at workplaces, football fields and large parking areas. Please note that the driver is purchased separately due to size and weight.

Design and material
Floodlight MAX is available in three sizes up to 137 lm/W, which ensures a good financial investment. The luminaire housing is made of powder coated aluminum (RAL 9006), which has been specially developed for the Danish weather conditions with 1000-hour salt mist test.

The luminaire is flexible when it comes to installing the product. The faucet head can be rotated 360° and the driver can either be mounted on the luminaire or installed on the side of the mast to reduce weight.

Installation in the driver box is simple. It is possible to loop in the box and the innards are easy to change. In addition, it is possible via dipswitch to activate/deactivate individual LED modules for precise brightness adjustment.

Technical specifications
• 5 year warranty
• Very long service life (L70/B10): Up to 100,000 hours (at 25°C).
• Surge protection: up to 10 kV (L/N-PE)
• Protection class: II
• Up to 164,000 lumens
• Up to 136 lm/W
• Color rendering: Ra>70

Link to manufacturer:
Ledvance
Ledvance

Adjustability	Svingbar
Adjustable color temperature	No
Adjustable light distribution	No
adjustable luminous flux	No
Angle of radiation	Extrem smal stråle 5-10°
Attenuation 0-10 V	No
Attenuation 1-10 V	No
Attenuation DALI	No
Attenuation depending on control equipment	No
Attenuation DSI	No
Attenuation GPRS	No
Attenuation LineSwitch	No
Attenuation manufacturer's own system	No
Attenuation potentiometer (integrated)	No
Attenuation programmable	No
Attenuation RF	No
Attenuation zigbee	No
Bluetooth-operated	No
Brand	LEDVANCE
Built-in diameter	0 mm
CLO	No
Color consistency (McAdam ellipse)	SDCM5
Color of light	Other
Color rendering index	70-79 (klasse 2A)
Color temperature	5700 - 5700 K
Compatible with Amazon Alexa	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Connectable conductor cross-section	1.5 - 2.5 mm²
Connection type	Stikklemme
Country of origin	CN - China
Dam at the forefront	No
Dam on trailing edge	No
Dam sine curve reduction	No
Description	4058075580664
Dimmable	Yes
Dimmable DALI-2	No
Dimming DMX	No
Dimming with touch	No
EAN number	4058075580664
Efficient luminous flux	155000 lm
EL number	5640004885
Emergency power supply integrated	No
Enclosure color	Grå
Energy efficiency class	A + +
Energy efficiency class of the built-in lamp	A++, A+, A (LED)
Filament tested against IEC 60695-2-11	650 °C - 30 s
Fire resistance "D"	No
Food contact material	No
Height/depth	282 mm
Impact resistance	IK08
In-insulated ceiling fire protection	No
Interchangeable control equipment	No
LED rated current at constant current	6320 - 6320 mA
Length (mm)	1300 mm
Light distribution	Symmetrisk
Light distributor	Reflektor
Light emission	Direkte
Light output	129 lm/W
Light source type	LED ikke udskiftelig
Luminaire efficacy	129 - 129 lm/W
Luminaire efficiency	129 - 129 lm/W
Luminous flux	155000 - 155000 lm
Material enclosures	Aluminium
Net weight	31.900,00 g / STK
Nominal ambient temperature according to IEC62722-2-1	-30 - 50 °C
Nominal luminous flux IEC 62722-2-1	155000 - 155000 lm
Not dimmable	No
Number of poles	3
Pack size	10
Product code	270111332
Protection class (IEC 60529)	II
Protection class (IP)	IP66
Protection class (IP) front page	IP66
Push button dimming	No
Rated current	6320 - 6320 mA
Rated luminous flux according to IEC 62722-2-1	155000 - 155000 lm
Rated voltage	0 - 1 V
REACH – contains substances from the Candidate List?	No
Reflector	Mat
RoHS compliant	Yes
Series	SPORTS PFM
Server	EVG
Service life L70/B50 at 25°C	100000 h
Service life L80/B10 at 25°C	75000 h
Shielding material	Glas transparant
Socket	None
Stock item	No
Suitable for built-in	No
Suitable for ceiling mounting	No
Suitable for ceiling pendant	No
Suitable for clamp mounting	No
Suitable for low voltage cable system	No
Suitable for number of lamps	0
Suitable for pedestal/floor mounting	Yes
Suitable for power strip mounting	No
Suitable for surface-mounting	Yes
Suitable for traverse assembly	Yes
Suitable for wall mounting	Yes
Supports IFTTT	Yes
Surface brushed	No
Surface treatment	Pulverlakering
System power	1200 W
Total harmonic distortion (THD)	RG2
Type of conductor	Slutning
Unit	STK
UNSPSC	39111611
Useful for office workspace	No
Voltage modulation attenuation	No
Voltage type	DC
Width (mm)	591 mm
With ballast	No
With light sensor	No
With light source	Yes
With motion sensor	No
