Lufttæppe 2m el varme

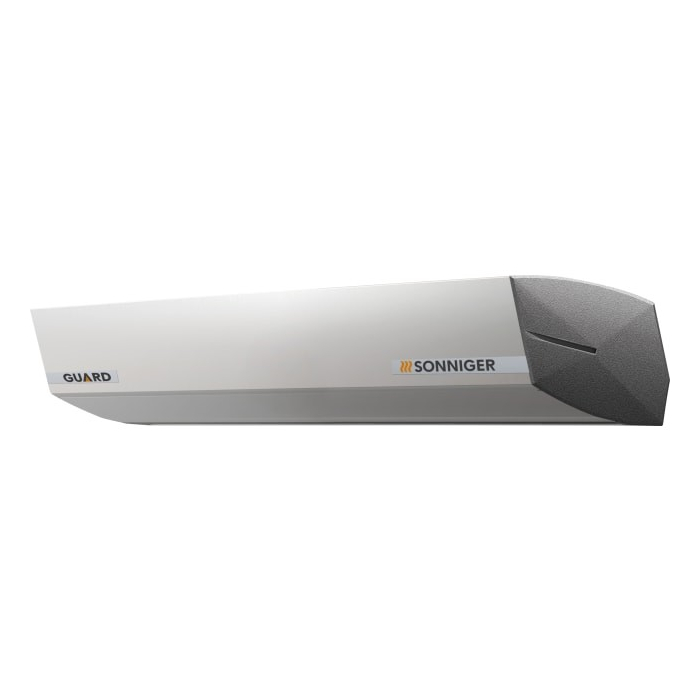

Air curtain in smart modern streamlined design with electrically heated heat exchanger. Fits nicely into modern buildings and shops. 8.5 - 14Kw* Electric heated heat blanket of 2 meters, model Guard New 200E (electric)



The air curtain is produced in lightweight material and weighs only 29kg.

The motor for the fan is an energy-friendly motor with 3 steps of only 230V 50hz, and uses only 2.6Amps, and the 320W.

EL heating coil is a 400V/50hz at 22.4 Ampere

Noise level 62dB (A)

Can be easily operated with control box TR-110 plumbing no 354939910 (ordered separately)

IP21

Dimensions : L 2024mm x d 368mm x h 255mm

14kw heat output. At flow-through air temperature 10°C., airflow measures 24°C in the exhaust air.

• SMART DESIGN. DOES NOT SPOIL NICE ENTRANCES. LOW WEIGHT. FAN MOTOR WITH LOW POWER CONSUMPTION. CAN BE MOUNTED VERTICALLY AND HORIZONTALLY MOUNTING HEIGHT UP TO 3.7M OR BY VERTICAL, AIRFLOW BLOWING OUT TO 3.7M SIMPLE OPERATION WITH PANEL COMFORT. CAN BE CONNECTED TO OUTPUT RELAY FROM EG AN AUTOMATIC DOOR SENSOR BMS. CAN SEND BASIC SIGNALS TO BUILDING MANAGEMENT SYSTEMS

Brand	SONNIGER
Colour	Grå
Degree of protection (IP value)	21
Depth (mm)	368 mm
Description	CG0024
EAN number	5906660483359
Food contact material	No
Heater connection voltage	400 V
Height (mm)	255 mm
Max sound level (distance 3 m)	62 dB(A)
Max. airflow	4800 m³/h
Max. door width	2 m
Max. heat capacity	14 kW
Maximum air capacity	4800 m³/h
Maximum fan input power	320 kW
Maximum fan power consumption	2.6 A
Maximum mounting height (vent side)	4 m
Maximum power consumption for heat	22.4 A
Minimum installation height (discharge height)	2.2 m
Number of heating levels	3
Number of ventilation options	3
Pack size	1
Protection class (IP)	IP21
REACH – contains substances from the Candidate List?	No
RoHS compliant	Yes
Stock item	No
Type	Frithængende
Unit	STK
UNSPSC	27131605
Vent test	Fast
Ventilation connection voltage	230 V
VVS number	355620201
Width (mm)	2024 mm
