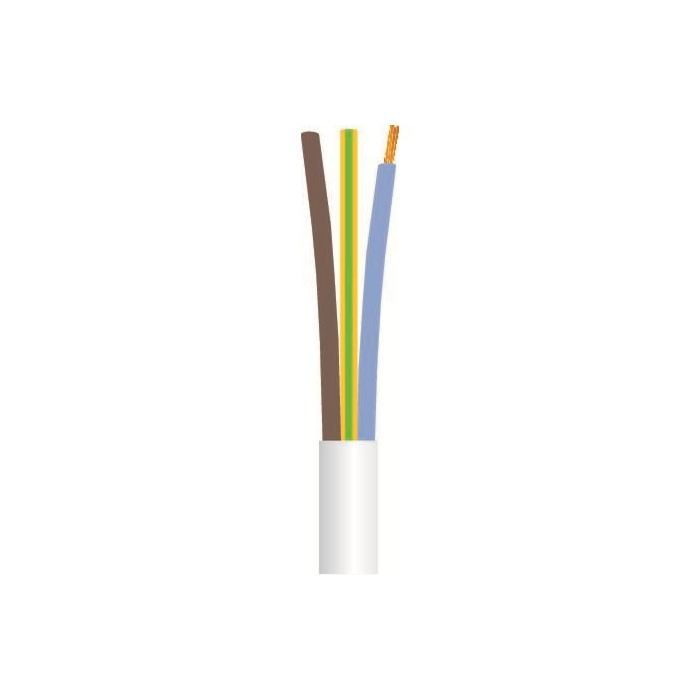

Nexans Ledning h05z1z1-f 3g0,75 hvid sp
400 Meter on stock (day-to-day delivery)
Description / Nexans Ledning h05z1z1-f 3g0,75 hvid sp
Use
Application
Halogen-free lightweight sheath cord for use as a supply to
utility items and lighting fixtures.
Construction standard:
HD 21.5 (adapted)
Construction
Conductor Fine-threaded copper
Insulation Halogen-free insulation compound
Lay-up Winding conductors Sheath White halogen-free polyolefin
Conductor marking
Number of conductors
Conductor color
2 Blue, brown 3 Green/yellow, blue, brown
4 Green/yellow, brown, black, grey 5 Green/yellow, blue, brown, black, grey
Electrical specifications
Test voltage 2000V AC
Operating voltage 300/500V
Max. conductor temperature operation 70°C Max. conductor temperature short circuit 160°C Mechanical specifications Jacket thickness, mm 0.80 Temperature operation -5 to +70°C Handling temperature -5 to +40
°C
Bending radius 6 x D
More Information
| Aid element | None |
| Allowable max. conductor temperature | 70 °C |
| Approved outside temperature, fixed cable | -40 - 70 °C |
| Approved outside temperature, movable cable | -10 - 40 °C |
| AWG size | 20 |
| Cable geometry? | Rund |
| Color outer sheath | White |
| Conduction resistance at 20°C | 26 Ohm/km |
| Conductor insulation | Polyolefin |
| Conductor marking | Farve |
| Conductor marking per HD 308 S2 | Yes |
| Conductor surface | Blank |
| Couple building | No |
| Fire retardant | Iht. IEC/EN 60332-1-2 |
| Flame retardant per IEC 60332-1-2 | Yes |
| Food contact material | No |
| Form | Rund |
| Halogen-free (according to EN 60754-1 / 2) | Yes |
| Halogen-free (according to IEC 60754-2) | Yes |
| Individual display | None |
| Leader class | Klasse 5 = mangetrådet |
| Leadership form | Rund |
| Leadership material | Kobber |
| Nominal conductor cross-section | 0.75 mm² |
| Number of managers | 3 |
| Oil resistant (IEC 60811 to 404) | No |
| Outer diameter | 6.6 mm |
| Outer jacket material | Polyolefin |
| Protection manager | Yes |
| Rated voltage U | 300 V |
| Rated voltage U0 | 300 V |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | Yes |
| Screen over foil | None |
| Torsion protection | No |
| UNSPSC | 26121641 |
| Weight | 54 kg/km |
| With protective conductor | Yes |
