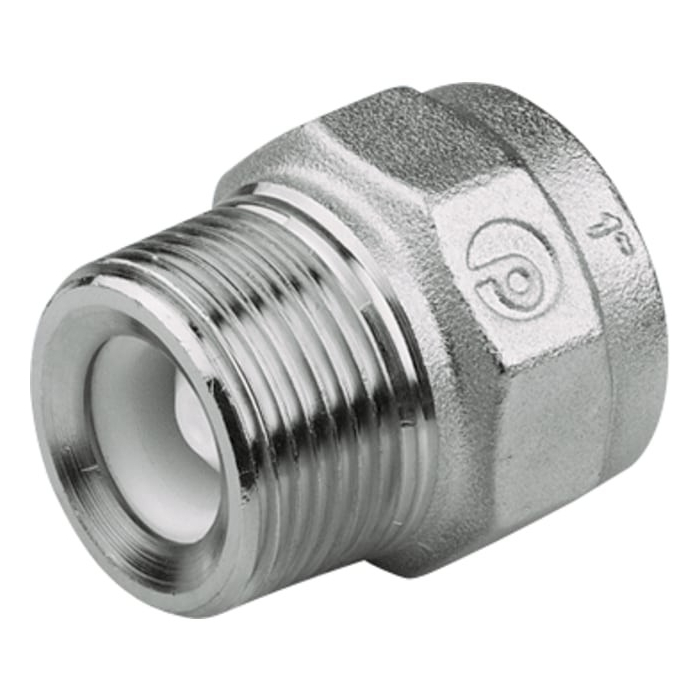

Check valve short sleeve/nipple 1'' (model CR)
2 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
8016603165703
Supplier no.
0243027086
Type no.
488NDA-008
VVS No.
430453008
Price per Styk
€16.58
Excl. Tax:
€13.26
Excl. Tax:
Excl. Tax:
Regular Price
€45.93
Min. order 1 Styk
Description / Pettinaroli Kontraventil kort mf/np krom 1
Use
Check valve nipple/sleeve, dezincification-free brass alloy, nickel-plated. Short model.
RECOMMENDED OPERATING TEMPERATURE/ MAXIMUM PRESSURE:
16 bar - 100°C - non shock
Link to manufacturer:
Pettinaroli
Pettinaroli
More Information
| Brand | PETTINAROLI |
| Connections | Indvendigt rørgevind cylindrisk (BSPP) |
| Country of origin | IT - Italy |
| Default | DIN |
| Description | 488NDA-008 |
| EAN number | 8016603165703 |
| External pipe diameter, all connections | 34.2 mm |
| Food contact material | No |
| Gasket | Gummi / Kunststof |
| Height (mm) | 41 mm |
| Length connection 1 | 20 mm |
| Length connection 2 | 20 mm |
| Material for housing | Bronze |
| Material quality | Zinkfri messing |
| Maximum mean temperature (continuous) | 100 °C |
| Maximum pressure at 20 gr. C | 16 bar |
| Maximum working pressure at 20 gr. C | 10 bar |
| Minimum medium temperature (continuous) | 5 °C |
| Net weight | 178,10 g / STK |
| Nominal diameter | 1" |
| Pack size | 6 |
| Pressure class | PN 10 |
| Pressure stage flange | PN 16 |
| Product code | 270129116 |
| Protection class | Other |
| REACH – contains substances from the Candidate List? | No |
| Real working length connection 1 | 17 mm |
| Real working length connection 2 | 17 mm |
| Standard | Other |
| Stock item | Yes |
| Surface treatment | Other |
| Type | Lige |
| Unit | STK |
| UNSPSC | 40141604 |
| Valve shape | Kegle |
| VVS number | 430453008 |
