Pettinaroli Kuglehane let stålgreb mf/mf 2
Main image
Click to view image in fullscreen
![]()

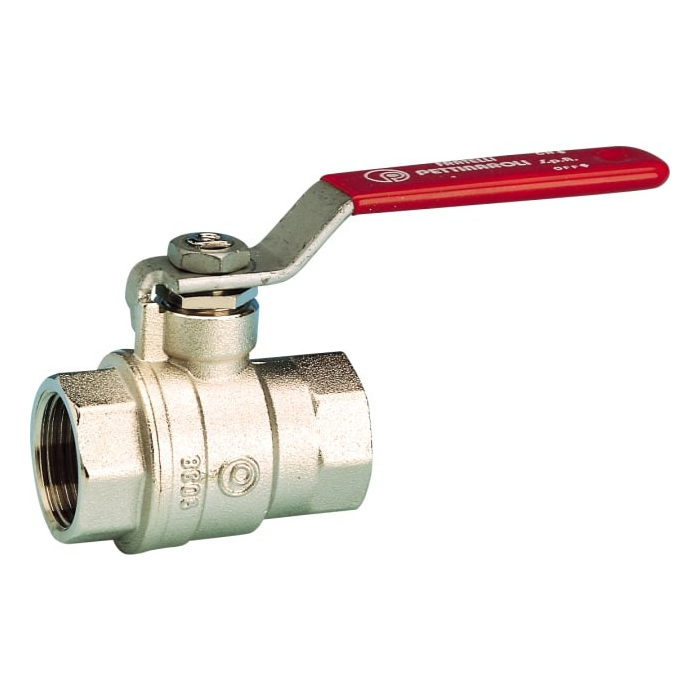

Ball valve 2'' sleeve/sleeve with steel grip
16 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
8016603073848
Supplier no.
0241027143
Type no.
51CE-012
VVS No.
418102712
Price per Styk
€60.34
Excl. Tax:
€48.27
Excl. Tax:
Excl. Tax:
Regular Price
€181.05
Min. order 1 Styk
Description / Pettinaroli Kuglehane let stålgreb mf/mf 2
- RECOMMENDED OPERATING TEMPERATURE/ MAXIMUM PRESSURE:
- 30 bar - 100°C - non shock
- 10 bar - 115°C - non shock
Link to manufacturer:
Pettinaroli
Pettinaroli
More Information
| Allowed by NCP | No |
| Ball sealing material | PTFE |
| Bottling option | No |
| Brand | PETTINAROLI |
| Bullet material | Rustfri stål |
| Connection 1 | Indvendigt rørgevind cylindrisk (BSPP) |
| Connection 2 | Indvendigt rørgevind cylindrisk (BSPP) |
| Country of origin | IT - Italy |
| Description | 51CE-012 |
| Design | 1-stykke |
| Dimension connection 1 | 2"" |
| DVGW signing | No |
| EAN number | 8016603073848 |
| EN 331 permit | No |
| External pipe diameter connection 1 | 50 mm |
| Fireproof | No |
| FM examination | No |
| Food contact material | No |
| Gas permit QA | No |
| Height handle | 89 mm |
| KIWA certified | No |
| Length connection 1 | 51.5 mm |
| Length connection 2 | 21.5 mm |
| Length handle | 150 mm |
| LPCB study | No |
| Material enclosures | Messing |
| Material for housing | Messing |
| Material quality | Messing (CuZn35Pb1,5AlAs) (CW625N) |
| Maximum mean temperature (continuous) | 150 °C |
| Mean temperature (continuous) | -10 - 90 °C |
| Minimum medium temperature (continuous) | -20 °C |
| Net weight | 1.762,20 g / STK |
| Nominal diameter | 2" |
| Nominal diameter connection 1 | 2" |
| Nominal diameter connection 2 | 2" |
| Operation | Håndtag |
| Pack size | 2 |
| Pressure class | PN 16 |
| Primary spindle sealing material | PTFE |
| Product code | 270129244 |
| REACH – contains substances from the Candidate List? | No |
| Real working length connection 1 | 19 mm |
| Real working length connection 2 | 19 mm |
| Secondary spindle sealing material | FPM (FKM) |
| Series | 51CE |
| Spindle material | Bronze |
| Stock item | Yes |
| Surface protection, housing | Nikkelbelagt |
| Type | Lige |
| UL study | No |
| ULC color | No |
| Unit | STK |
| UNSPSC | 40141607 |
| VdS-controlled | No |
| VVS number | 418102712 |
| With bottling | No |
| With check valve | No |
| With filter | No |
| With insulation sheath | No |
| With thermometer | No |
