Pettinaroli Kuglehane let stålgreb np/np 1/2
Main image
Click to view image in fullscreen
![]()

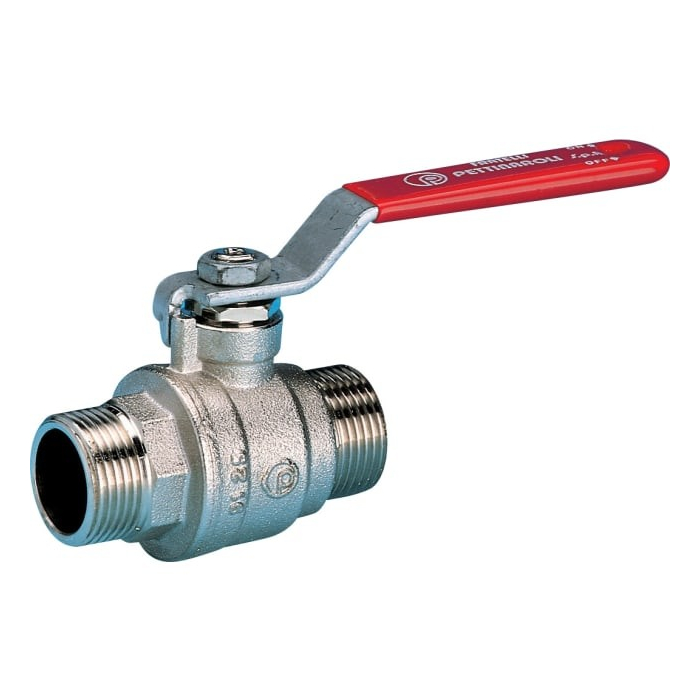

Ball valve 1/2'' nipple/nipple steel grip
177 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
8016603041977
Supplier no.
0241027596
Type no.
51CE/2-004
VVS No.
418104704
Price per Styk
€6.79
Excl. Tax:
€5.43
Excl. Tax:
Excl. Tax:
Regular Price
€20.38
Min. order 1 Styk
Description / Pettinaroli Kuglehane let stålgreb np/np 1/2
Use
Compact ball valve with full flow. Red steel handle. EN 13828
RECOMMENDED OPERATING TEMPERATURE/ MAXIMUM PRESSURE:
30 bar - 100°C - non shock 10 bar - 115°C - non shock
Link to manufacturer:
Pettinaroli
Pettinaroli
More Information
| Allowed by NCP | No |
| Ball sealing material | PTFE |
| Bottling option | No |
| Brand | PETTINAROLI |
| Bullet material | Rustfri stål |
| Connection 1 | Udvendigt rørgevind konisk (BSPT) |
| Connection 2 | Udvendigt rørgevind konisk (BSPT) |
| Country of origin | IT - Italy |
| Description | 51CE/2-004 |
| Design | 1-stykke |
| Dimension connection 1 | 1/2"" |
| DVGW signing | No |
| EAN number | 8016603041977 |
| EN 331 permit | No |
| External pipe diameter connection 1 | 21.3 mm |
| Fireproof | No |
| FM examination | No |
| Food contact material | No |
| Gas permit QA | No |
| Height handle | 39 mm |
| KIWA certified | No |
| Length connection 1 | 11.5 mm |
| Length connection 2 | 11.5 mm |
| Length handle | 75 mm |
| LPCB study | No |
| Material enclosures | Messing |
| Material for housing | Messing |
| Material quality | Messing (CuZn35Pb1,5AlAs) (CW625N) |
| Maximum mean temperature (continuous) | 150 °C |
| Mean temperature (continuous) | -10 - 90 °C |
| Minimum medium temperature (continuous) | -20 °C |
| Net weight | 170,49 g / STK |
| Nominal diameter | 1/2" |
| Nominal diameter connection 1 | 1/2" |
| Nominal diameter connection 2 | 1/2" |
| Operation | Håndtag |
| Pack size | 18 |
| Pressure class | PN 16 |
| Primary spindle sealing material | PTFE |
| Product code | 270129244 |
| REACH – contains substances from the Candidate List? | No |
| Real working length connection 1 | 11.5 mm |
| Real working length connection 2 | 11.5 mm |
| Secondary spindle sealing material | FPM (FKM) |
| Series | 51CE |
| Spindle material | Bronze |
| Stock item | Yes |
| Surface protection, housing | Nikkelbelagt |
| Type | Lige |
| UL study | No |
| ULC color | No |
| Unit | STK |
| UNSPSC | 40141607 |
| VdS-controlled | No |
| VVS number | 418104704 |
| With bottling | No |
| With check valve | No |
| With filter | No |
| With insulation sheath | No |
| With thermometer | No |
