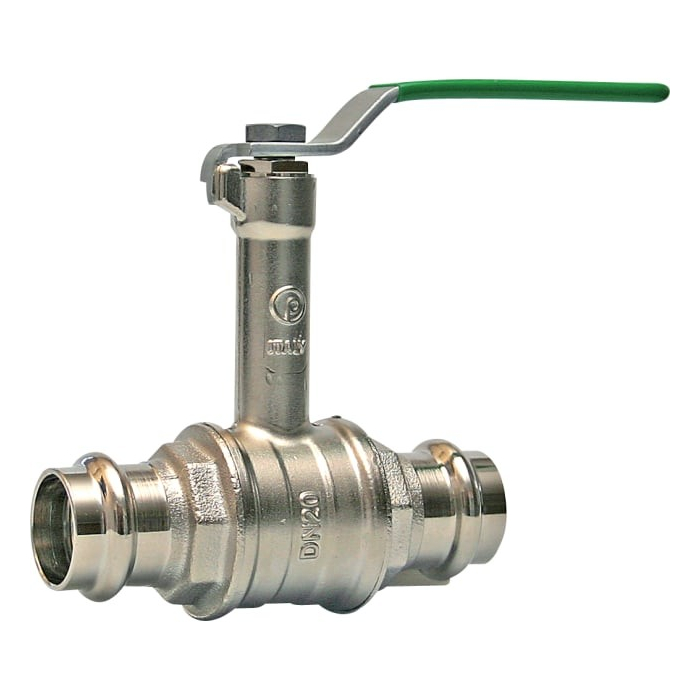

Pettinaroli Pressure ball long pressure/pressure 15x15

Ball sealing material	PTFE
Brand	PETTINAROLI
Bullet material	Messing
Connection 1	Pres system
Connection 2	Pres system
Contour code connection 1	M/V
Country of origin	IT - Italy
Description	P100L-015
Design	1-stykke
Dimension connection 1	DN 10
EAN number	8016603219970
External pipe diameter connection 1	15 mm
External pipe diameter connection 2	15 mm
Fireproof	No
Food contact material	No
Height handle	84.5 mm
Length connection 1	31.5 mm
Length connection 2	31.5 mm
Length handle	75 mm
Material enclosures	Messing
Material for housing	Messing
Material quality	Messing (CuZn40Pb2) (CW617N)
Maximum mean temperature (continuous)	95 °C
Mean temperature (continuous)	-10 - 90 °C
Minimum medium temperature (continuous)	-20 °C
Net weight	322,00 g / STK
Nominal diameter	DN 8
Nominal diameter connection 1	DN 10
Nominal diameter connection 2	DN 10
Operation	Håndtag
Outline code connection 2	M/V
Pack size	10
Pressure class	PN 10
Primary spindle sealing material	PTFE
Product code	270129244
REACH – contains substances from the Candidate List?	No
Real working length connection 1	31.5 mm
Real working length connection 2	31.5 mm
Rectifier current	Coated
Secondary spindle sealing material	FPM (FKM)
Series	TEA
Spindle material	Messing
Stock item	Yes
Surface protection, housing	Coated
Type	Lige
Unit	STK
UNSPSC	40141607
VVS number	428404015
