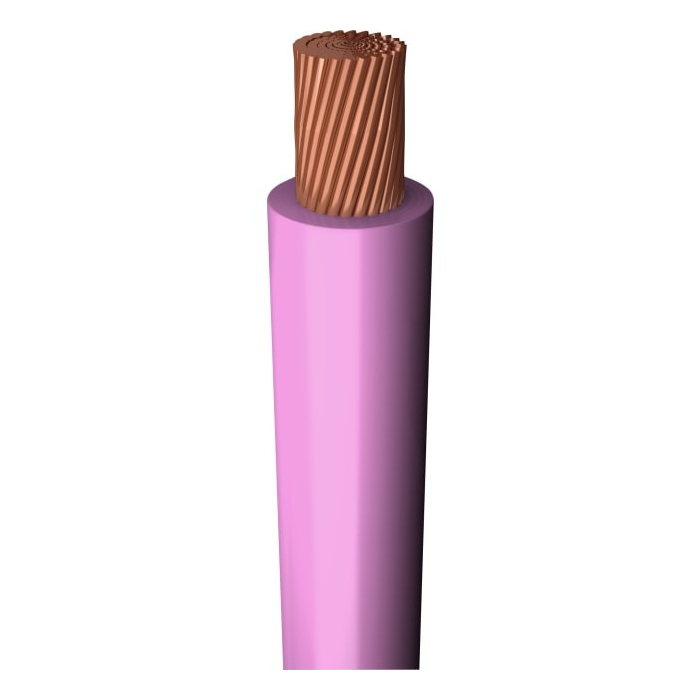

Prysmian H07z-k 1x1,5 lyserød 450/750 v s100
Main image
Click to view image in fullscreen
![]()
H07z-k 1x1.5 pink 450/750 v s100
Temporarily out of stock - Expected on stock 11-07-2026
↻
Updating inventory, please wait...
Last Updated:
EAN
8430220717655
Supplier no.
5432900003
Type no.
20118653
Price per Meter
€0.98
Excl. Tax:
€0.78
Excl. Tax:
Excl. Tax:
Regular Price
€3.56
Min. order 100 Meter
Description / Prysmian H07z-k 1x1,5 lyserød 450/750 v s100
More Information
| Allowable max. conductor temperature | 90 °C |
| Approved outside temperature, fixed cable | -40 - 90 °C |
| Approved outside temperature, movable cable | -5 - 50 °C |
| Cold resistant according to EN 60811-504 + 505 + 506 | Yes |
| Color outer sheath | Lyserød |
| Conductor diameter | 1.8 mm |
| Conductor insulation | Other |
| Conductor marking | Farve |
| Conductor surface | Blank |
| Fire retardant | I overensstemmelse med IEC/EN 60332-3-24 |
| Food contact material | No |
| Halogen-free (according to EN 60754-1 / 2) | Yes |
| Insulation performance | No |
| Leader class | Klasse 5 = mangetrådet |
| Leader color | Lyserød |
| Leadership form | Rund |
| Leadership material | Kobber |
| Low smoke generation according to EN 61034-2 | Yes |
| Nominal conductor cross-section | 1.5 mm² |
| Number of managers | 1 |
| Oil resistant (IEC 60811 to 404) | No |
| Outer diameter | 3 mm |
| Outer jacket material | Copolymer, termoplastisk |
| Protection manager | No |
| Rated voltage U | 750 V |
| Rated voltage U0 | 450 V |
| REACH – contains substances from the Candidate List? | No |
| Reaction class fire according to EN 13501-6 | None |
| RoHS compliant | Yes |
| Screen | No |
| UNSPSC | 26121641 |
| Winding leader | No |
