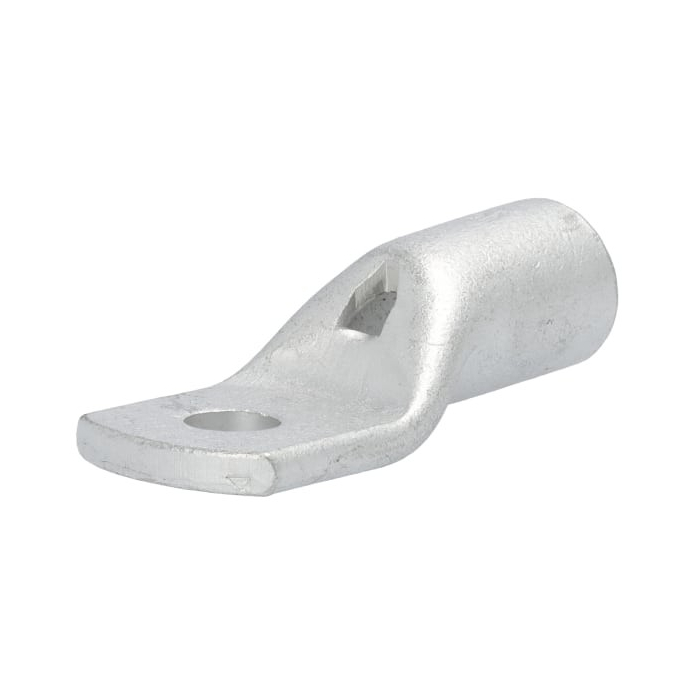

Tube cable lugs CU 185,0 mm²bolt hole Ø13,0 mm, length 79 mminner diameter 19,0 mm
Non-stock item - Expected shipment 27-03-2026 - if you order today
↻
Updating inventory, please wait...
Last Updated:
EAN
5705151213419
Supplier no.
0821103416
Type no.
KRT 185-12
Price per Styk
€5.93
Excl. Tax:
€4.74
Excl. Tax:
Excl. Tax:
Regular Price
€10.56
Min. order 25 Styk
Description / Rørkabelsko cu 185 m12
Tube cable lug copper Type: KRT. With inspection hole, for few-threaded managers class 2. For hexagon pressing, the marking on cable lugs and the press tray must be the same
Press tool HYCP 240 hydraulic without trays for tube cable lugs copper 08.97.110.501
Type: KRF for multi-threaded conductors class 5 and few-wire conductors class 2, only for 120 mm²
Type: KRT for threaded conductors class 2
Type: KRD for few wire conductors class 2
Press trays for Press tools HYCP 240
NH 7-8.5: Press tray for KRT 10mm² (NH7), KRT 16mm² (NH8,5) 08.97.110.514
NH 8-9: Press tray for
KRF 10mm² (NH8), KRF 16mm² (NH9) and KRD 16mm² (NH8), KRD 25mm² (NH9) 08.97.110.527
NH 8-17: Press tray for
KRF 10mm² (NH8), KRF 70mm² (NH17) and KRD 16mm² (NH8) (not created) use 08.97.110.527 and 569
NH 9-13: Press tray for
KRF 16mm² (NH9), KRF 35mm² (NH13) and KRD 25mm² (NH9) (not created) use 08.97.110.527 and 530
NH 10-12: Press tray for KRT 25mm² (NH10), KRT 35mm² (NH12) and KRD 50mm² (NH12) 08.97.110.543
NH 11-13: Press tray for KRF 25mm² (NH11), KRF 35mm² (NH13) and KRD 35mm² (NH11) 08.97.110.530
NH 11-14.5: Press tray for
KRF 25mm² (NH11) and KRF 50mm² (NH14,5) uncreated use 08.97.110.530 and 569
NH 14-16: Press tray for
KRT 50mm² (NH14), KRT 70mm² (NH16) and KRD 70mm² (NH14) KRD 95mm² (NH16) 08.97.110.556
NH 14.5-17: Press tray for KRF 50mm² (NH14.5) and KRF 70mm² (NH17) 08.97.110.569
NH 16-20: Press tray for KRT 70mm² (NH16), KRD 95mm² (NH16) and KRF 95mm² (NH20) 08.97.110.585
NH 18-19: Press tray for KRT 95mm², KRT 120mm² (NH19) and KRD 120mm² (NH19) 08.97.110.572
NH 20: Press tray for KRF 95mm² (NH20) (not created) use 08.97.110.585
NH 22: Press tray for KRT 150mm² (NH22) and KRD 150mm² (NH22) 08.97.110.598
NH 24: Press tray for KRT 185mm² 08.97.110.608
NH 25: Press tray for KRD 185mm² 08.97.110.611
NH 26: Press tray for KRT 240mm² 08.97.110.624
NH 27: Press tray for KRD 240mm² 08.97.110.637
Press tool HYCP 240 hydraulic without trays for tube cable lugs copper 08.97.110.501
Type: KRF for multi-threaded conductors class 5 and few-wire conductors class 2, only for 120 mm²
Type: KRT for threaded conductors class 2
Type: KRD for few wire conductors class 2
Press trays for Press tools HYCP 240
NH 7-8.5: Press tray for KRT 10mm² (NH7), KRT 16mm² (NH8,5) 08.97.110.514
NH 8-9: Press tray for
KRF 10mm² (NH8), KRF 16mm² (NH9) and KRD 16mm² (NH8), KRD 25mm² (NH9) 08.97.110.527
NH 8-17: Press tray for
KRF 10mm² (NH8), KRF 70mm² (NH17) and KRD 16mm² (NH8) (not created) use 08.97.110.527 and 569
NH 9-13: Press tray for
KRF 16mm² (NH9), KRF 35mm² (NH13) and KRD 25mm² (NH9) (not created) use 08.97.110.527 and 530
NH 10-12: Press tray for KRT 25mm² (NH10), KRT 35mm² (NH12) and KRD 50mm² (NH12) 08.97.110.543
NH 11-13: Press tray for KRF 25mm² (NH11), KRF 35mm² (NH13) and KRD 35mm² (NH11) 08.97.110.530
NH 11-14.5: Press tray for
KRF 25mm² (NH11) and KRF 50mm² (NH14,5) uncreated use 08.97.110.530 and 569
NH 14-16: Press tray for
KRT 50mm² (NH14), KRT 70mm² (NH16) and KRD 70mm² (NH14) KRD 95mm² (NH16) 08.97.110.556
NH 14.5-17: Press tray for KRF 50mm² (NH14.5) and KRF 70mm² (NH17) 08.97.110.569
NH 16-20: Press tray for KRT 70mm² (NH16), KRD 95mm² (NH16) and KRF 95mm² (NH20) 08.97.110.585
NH 18-19: Press tray for KRT 95mm², KRT 120mm² (NH19) and KRD 120mm² (NH19) 08.97.110.572
NH 20: Press tray for KRF 95mm² (NH20) (not created) use 08.97.110.585
NH 22: Press tray for KRT 150mm² (NH22) and KRD 150mm² (NH22) 08.97.110.598
NH 24: Press tray for KRT 185mm² 08.97.110.608
NH 25: Press tray for KRD 185mm² 08.97.110.611
NH 26: Press tray for KRT 240mm² 08.97.110.624
NH 27: Press tray for KRD 240mm² 08.97.110.637
More Information
| According to DIN | No |
| Connection thread, metric dimension | 13 |
| Dual use (US) | EAR99 |
| Flange shape | Ringform |
| Food contact material | No |
| Insulation | None |
| Insulation color | Other |
| Nominal cross section from/to | 185 - 185 mm² |
| REACH – contains substances from the Candidate List? | No |
| RoHS compliant | Yes |
| UNSPSC | 39121432 |
