Siemens Siem terminals 5,2mm grey
Main image
Click to view image in fullscreen
![]()

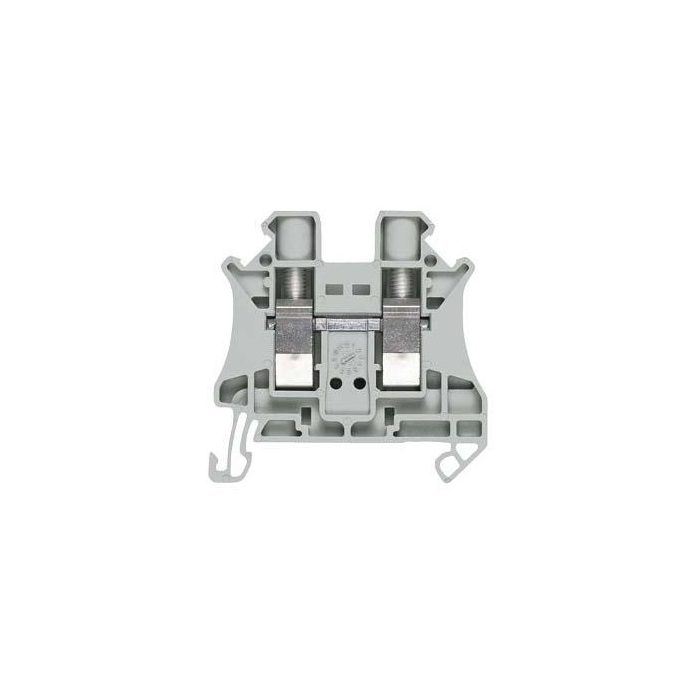

SIEMENS SIEM TERMINALS 5.2MM GREY Type: 8WH1000-0AF00
Non-stock item - Expected shipment 25-03-2026 - if you order today
↻
Updating inventory, please wait...
Last Updated:
EAN
4001869402857
Supplier no.
5401043096
Type no.
8WH1000-0AF00
Price per Styk
€2.96
Excl. Tax:
€2.37
Excl. Tax:
Excl. Tax:
Min. order 1 Styk
Description / Siemens Siem terminals 5,2mm grey
More Information
| Brand | SIEMENS |
| Colour | Grå |
| Completion stage required | Yes |
| Connection position | Sidelæns |
| Country of origin | DE - Germany |
| Depth (mm) | 46.9 mm |
| Description | 8WH1000-0AF00 |
| EAN number | 4001869402857 |
| EC-numbers | 231‑100‑4 |
| EL number | 5401043096 |
| Electrical connection type 1 | Skrueforbindelse |
| Electrical connection type 2 | Skrueforbindelse |
| Explosion tested version 'Ex e' | Yes |
| Flame retardant class of insulation materials ACC. with UL94 | V0 |
| Food contact material | No |
| Height (mm) | 48 mm |
| Height at lowest possible mounting surface | 47.5 mm |
| Installation method | DIN-skinne 35 mm |
| Insulating material | Other |
| Internally connected steps | No |
| Length (mm) | 48 mm |
| Max conductor cross-section finely threaded with tulle | 0.14 - 2.5 mm² |
| Max conductor cross-section finely threaded without tulle | 0.14 - 4 mm² |
| Max conductor cross-section multithreaded | 0.14 - 1.5 mm² |
| Max conductor cross-section single-threaded | 0.14 - 4 mm² |
| Net weight | 8,00 g / STK |
| Number of clamping positions per level | 2 |
| Number of levels | 1 |
| Operating temperature range | -60 - 105 °C |
| Pack size | 50 |
| Product code | 270118348 |
| Rated current I | 24 A |
| Rated voltage | 1000 V |
| REACH – contains substances from the Candidate List? | Yes |
| Series | SENTRON |
| Stock item | No |
| Type number | 8WH |
| Unit | STK |
| Width/grid dimension | 5.2 mm |
