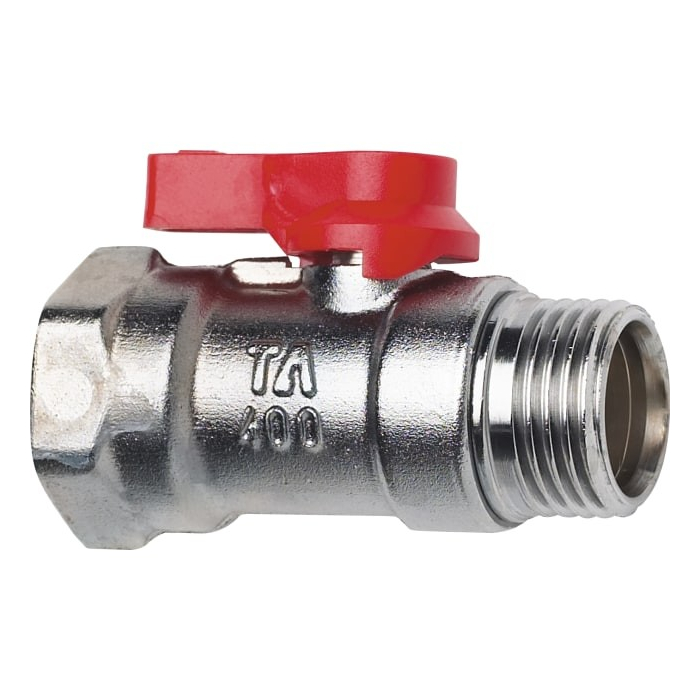

Ta 400 1/2'' kuglehane rød muffe/nippel

Use

Ball valve for heating and domestic water systems. It is made of dezincification resistant AMETAL®. Blow-out proof spindle. Operated using blue, red or black grip. If immediate operation is not desired, remove the handle and use the screwdriver. Can be connected to smooth pipes with TA combi coupling dim 8-16mm or TA FPL dim 8-16mm. Can also be mounted in the sleeve with KOMBI-PX couplings 12, 14, 15 and 16 mm plumbing 405189-xxx.
58 400-215, 58 400-615 and 58 400-715 can also be mounted on nipple with PX clutch kit 53 644 = plumbing 045179-xxx for 12 and 15 mm PEX pipes. TA 58 410-615 (black grip) has flat nipple end for various coupling alternatives with gasket, connection hoses etc.

Application: Heating and cooling systems. Domestic hot water system
Function: Shut-off
Pressure class: PN 10 Max. working temperature: 100°C. PEX pipes max. 95°C

Material = AMETAL
®Sealing rings = EPDM rubber
grip = Acetal plastic
Surface treatment = Chrome
plated marking = Valve body TA 400
and dim.
Type authentication = VA-approved
