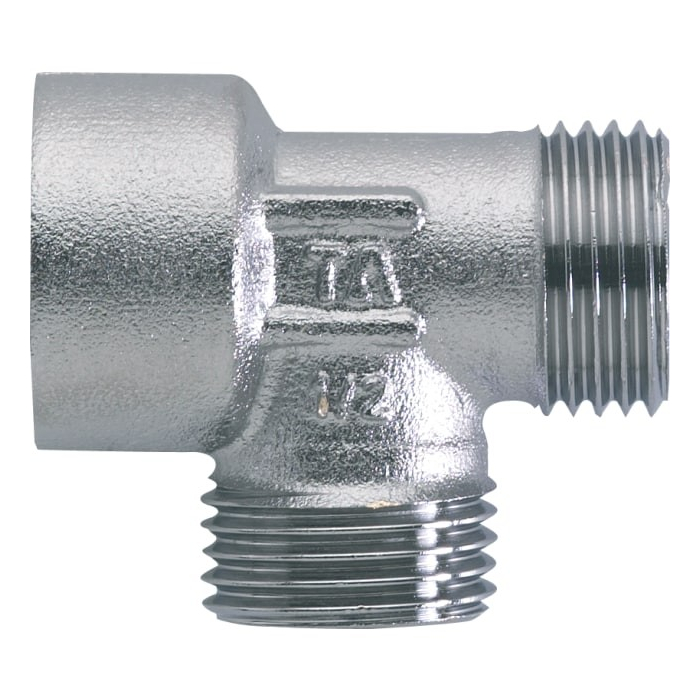

Ta Fpl t-stykke nippel/nippel/muffe 1/2''

Use

Clamp coupling for copper pipes, steel pipes and PEX pipes without oxygen barrier. Or to pipe manufacturers who have approved FPL for their PEX pipes. Support bushing must be used. Complete range from 6-54 mm. FPL is VA-approved.

Well-adjusted insertion length in the nipples provides good control of the pipe. The cone rings have internal grooves at the sealing edges that cut into the pipe, providing an additional guarantee of a secure joint.

Many combination options - one nipple size can handle several pipe dimensions when replacing the bypass and cone - which limits inventory.

Scope:
- Heating and cooling systems. Water.
- Process lines in industry and other plants where the medium does not attack the material.

FPL can be applied to the following pipes:
- Copper - Support sleeve AMETAL®.
- Steel - support sleeve steel.
- PEX pipe - support sleeve AMETAL®.

FPL clamping coupling for soft and hard copper pipes and soft steel pipes. As well as stainless steel pipes (up to 28 mm), as type MAPRESS (MPF).

FPL: PN 16
Max. working temperature: 100°C.

Material:Water-touched details: AMETAL O-rings: EPDM Support bushing:
AMETAL®
®resp. steel.


AMETAL® is TA's dezincification resistant alloy.
Surface treatment: Available in yellow or chrome-plated/nickel-plated finish. See respective product pages.

Type approval: VA-approved.
Approved by Det Norske Veritas.
