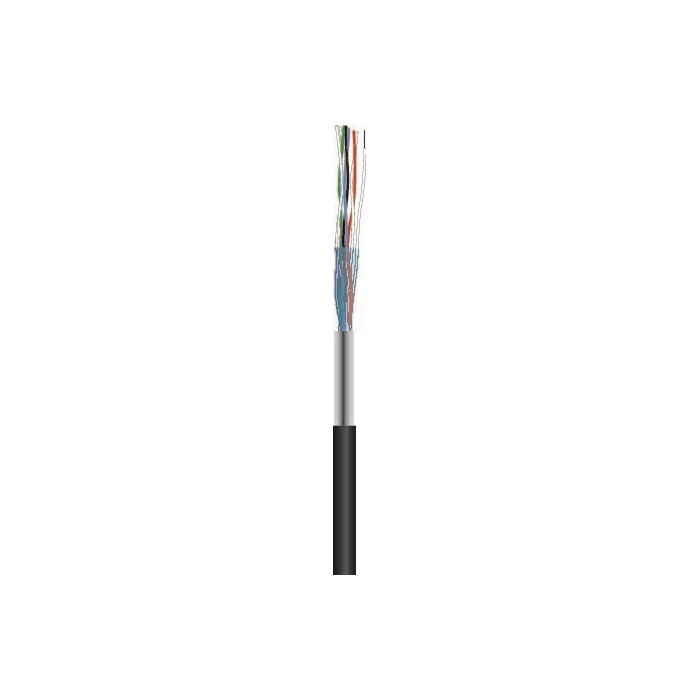

Vas.kabel 70nf sk.20x2x0,7 sor

Use
Vaseline cable used as telecommunications and signalling cable.
For outdoor installation and for burial.

Construction standard:
Factory standard

Construction
Conductor Solid, ung-tinned copper wire 0.7 mm
Insulation polyethylene
Fill Vaseline
Water barrier Paper or plastic tape
Screen Aluminum/polyethylene tape
Sheath Black polyethylene with production date and
meter marking

Pair No. L1 L2
1 White Blue
2 White Orange
3 White Green
4 White Brown
5 White grey
6 Red blue
7 Red Orange
8 Red Green
9 Red Brown
10 Red Grey

Conductor structure
Parstwisting Insulated conductors twisted into pairs
Cable twisting Pairs are twisted into choristers of 10 pairs, with
license band

Electrical specifications
Test voltage::
conductor/conductor: 2 kV DC for 3 seconds or 1 kV
DC for 60 seconds
Operating voltage 100 V
Wire resistance::
Maximum single conductor 48 ohms/km
Insulation resistance Min. 1500 Mohm/km
Parkapacitance 70 nF/km
Capacity skew:
pair/pair at 800Hz 95% 150 pF/500 m
pair/pair at 800Hz 100% 250 pF/500 m

Mechanical specifications
Conductor diameter 0.70 mm
Insulation thickness 0.25 mm
Permissible draught 50 N/mm2
Temperature fixed -20 to +60 °C
Handling temperature -30 to +60 °C
Bending radius 10 x D

Vaseline cables

• Shielded vaseline cable

Category	Other
Color outer sheath	Sort
Conductor diameter	0.7 mm
Conductor marking	Farve
Couple building	Par
Food contact material	No
Individual display	None
Leader class	Klasse 1 = massiv
Number of managers	40
Outer diameter	15.5 mm
REACH – contains substances from the Candidate List?	No
Reaction class fire according to EN 13501-6	None
RoHS compliant	Yes
Screen over foil	Foile
Specification material outer sheath	Other
UNSPSC	26121609
UV resistant	No
