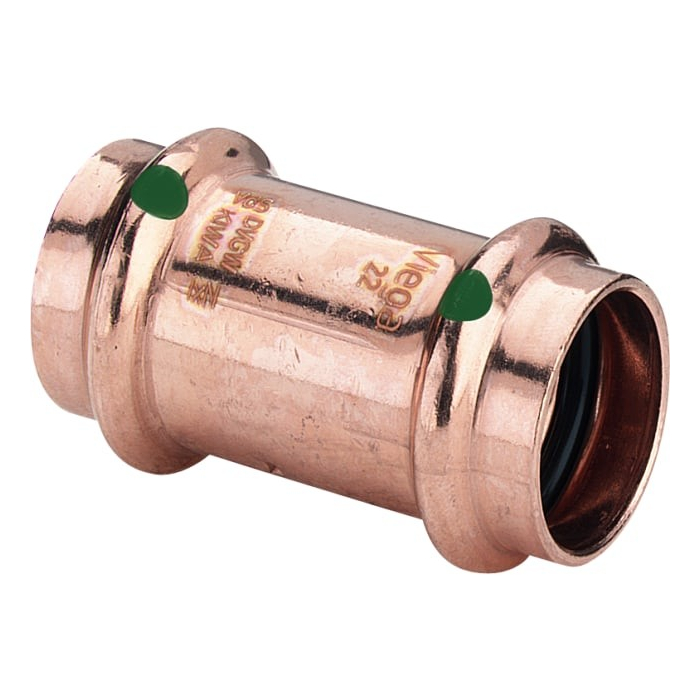

Viega Profipress muffe 54
Main image
Click to view image in fullscreen
![]()
Profipress sleeve 54
21 Piece on remote warehouse (ETA 3-5 workdays)
↻
Updating inventory, please wait...
Last Updated:
EAN
4015211292720
Supplier no.
0204016065
Type no.
292720
VVS No.
045560054
Price per Styk
€34.16
Excl. Tax:
€27.33
Excl. Tax:
Excl. Tax:
Regular Price
€164.89
Min. order 1 Styk
Description / Viega Profipress muffe 54
Use
Profipress with SC Contur
Press fittings made of copper and used for hard as well as soft copper pipes, produced according to standard EN 1057.
No support bushing should be used for either hard or soft copper pipes. However, soft copper pipes must be calibrated before pressing.
Profipress is supplied in the dimensions.: 12-15-18-22-28-35-42-54-64-76.1-88.9-108 mm.
More Information
| Brand | VIEGA |
| Connection 1 | Pres system |
| Connection 2 | Pres system |
| Contour code | V |
| Contour code connection 1 | V |
| Country of origin | DE - Germany |
| Description | 292720 |
| Dimension connection 1 | DN 50 |
| EAN number | 4015211292720 |
| Eccentric | No |
| External pipe diameter connection 1 | 54 mm |
| External pipe diameter connection 2 | 54 mm |
| FM examination | No |
| Food contact material | No |
| Form | Lige |
| Fuse characteristics | 16 bar |
| Fuse rating | No |
| Gas permit QA | No |
| Gaskets | EPDM |
| KIWA certified | Yes |
| Length (mm) | 84 mm |
| LPCB study | No |
| Main color fitting | Kobber |
| Material connection 1 | Kobber |
| Material connection 2 | Kobber |
| Material quality connection 1 | Cu-DHP (CW024A) |
| Material quality connection 2 | Cu-DHP (CW024A) |
| Maximum mean temperature (continuous) | 110 °C |
| Maximum working pressure at 20 gr. C | 16 bar |
| Mean temperature (continuous) | -25 - 105 °C |
| Minimum medium temperature (continuous) | -20 °C |
| Net weight | 280,00 g / STK |
| Nominal diameter connection 1 | DN 50 |
| Nominal diameter connection 2 | DN 50 |
| Outline code connection 2 | V |
| Pack size | 15 |
| Product code | 270090269 |
| REACH – contains substances from the Candidate List? | No |
| Reducing | No |
| Series | Profipress |
| Stock item | Yes |
| Surface protection connection 1 | Ubehandlet |
| Surface protection connection 2 | Ubehandlet |
| Surface treatment connection 1 | Ubehandlet |
| Surface treatment connection 2 | Ubehandlet |
| System bound | Yes |
| Type | 1-stykke |
| UL study | No |
| ULC color | No |
| Unit | STK |
| UNSPSC | 40172601 |
| VdS-controlled | Yes |
| VVS number | 045560054 |
| With bottling | No |
| With sealing rings / gaskets | Yes |
| With stop buffer | Yes |
| With vent | No |
