Viega Profipress t-stykke 18x15x15
Main image
Click to view image in fullscreen
![]()

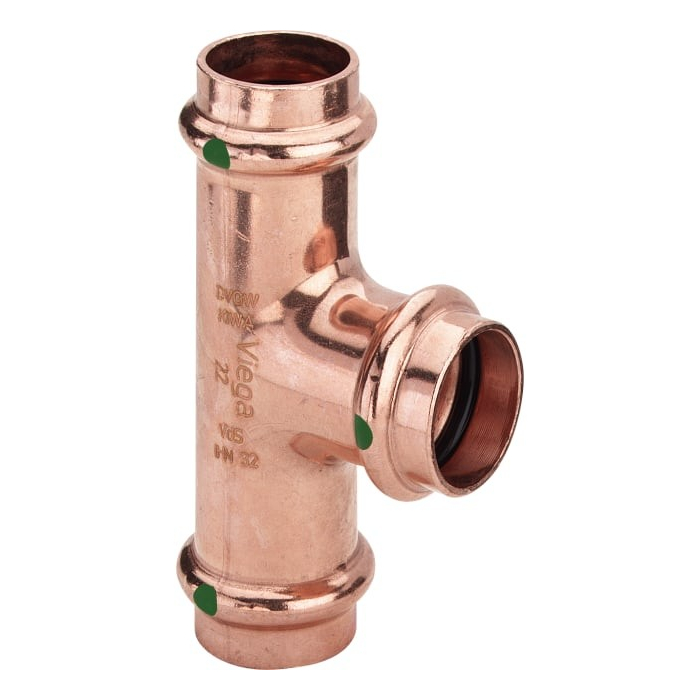

Profipress t-piece 18x15x15
Non-stock item - Expected shipment 24-03-2026 - if you order today
↻
Updating inventory, please wait...
Last Updated:
EAN
4015211291921
Supplier no.
0204013330
Type no.
291921
VVS No.
045530220
Price per Styk
€15.06
Excl. Tax:
€12.05
Excl. Tax:
Excl. Tax:
Regular Price
€67.73
Min. order 1 Styk
Description / Viega Profipress t-stykke 18x15x15
Use
Profipress with SC Contur
Press fittings made of copper and used for hard as well as soft copper pipes, produced according to standard EN 1057.
No support bushing should be used for either hard or soft copper pipes. However, soft copper pipes must be calibrated before pressing.
Profipress is supplied in the dimensions.: 12-15-18-22-28-35-42-54-64-76.1-88.9-108 mm.
More Information
| Actual length of connection 3 | 23 mm |
| Angle | 90 ° |
| Angle adjustable | No |
| Angular range | 90 - 90 ° |
| Brand | VIEGA |
| Connection 1 | Pres system |
| Connection 2 | Pres system |
| Connection 3 | Pres system |
| Contactor voltage | DN 12 |
| Contour code | V |
| Contour code connection 1 | V |
| Contour code connection 3 | V |
| Description | 291921 |
| Dimension connection 1 | DN15 |
| EAN number | 4015211291921 |
| External pipe diameter connection 1 | 18 mm |
| External pipe diameter connection 2 | 15 mm |
| External pipe diameter connection 3 | 15 mm |
| Flow type | No |
| FM examination | No |
| Food contact material | No |
| Fuse characteristics | 16 bar |
| Fuse rating | No |
| Gas permit QA | No |
| Gaskets | EPDM |
| KIWA certified | Yes |
| Length connection 1 | 41 mm |
| Length connection 2 | 35 mm |
| Longitudinal connection 3 | 45 mm |
| LPCB study | No |
| Material connection 1 | Kobber |
| Material connection 2 | Kobber |
| Material connection 3 | Kobber |
| Material quality 3 | Cu-DHP (CW024A) |
| Material quality connection 1 | Cu-DHP (CW024A) |
| Material quality connection 2 | Cu-DHP (CW024A) |
| Maximum mean temperature (continuous) | 110 °C |
| Maximum working pressure at 20 gr. C | 16 bar |
| Mean temperature (continuous) | -25 - 105 °C |
| Minimum medium temperature (continuous) | -25 °C |
| Multi-part | No |
| Nominal diameter connection 2 | DN 12 |
| Outline code connection 2 | V |
| Pack size | 10 |
| REACH – contains substances from the Candidate List? | No |
| Real working length connection 1 | 18.4 mm |
| Real working length connection 2 | 13 mm |
| Reducing | No |
| Series | Profipress |
| Stock item | No |
| Surface protection connection 1 | Ubehandlet |
| Surface protection connection 2 | Ubehandlet |
| Surface protection connection 3 | Ubehandlet |
| Surface treatment compound 3 | Ubehandlet |
| Surface treatment connection 1 | Ubehandlet |
| Surface treatment connection 2 | Ubehandlet |
| System bound | Yes |
| Type | T-stykke |
| UL study | No |
| ULC color | No |
| Unit | stk |
| UNSPSC | 40172601 |
| VdS-controlled | No |
| VVS number | 045530220 |
| With bottling | No |
| With sealing rings / gaskets | Yes |
| With stop buffer | No |
| With termic insulation | No |
| With vent | No |
