Afg.blok 3-vejs 1xhan/3xhun,3-p

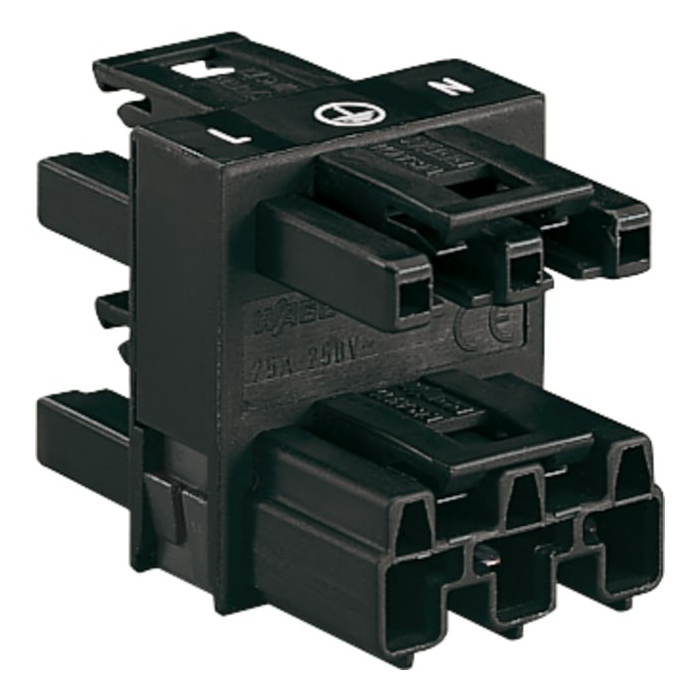

Winsta® Settlement Block1xhanstik/3xhunstik3-way3-pin, black

100 Piece on stock (day-to-day delivery)

EAN 4045454251352

Supplier no. 5428420351

Type no. 770-607

Regular Price €14.25

Min. order 1 Styk

Styk

Description / Afg.blok 3-vejs 1xhan/3xhun,3-p

Installation connectors are factory-ready-made with connectors, so the electrician can easily ''click'' the respective cables together. Installation connectors can be clicked together with the lighting fixture, and are suitable for placement in both floor and wall ducts - depending on the scope of the task.

Link to manufacturer:
Wago
Wago

More Information

Color coding/contact effort	Sort
Color separate adapter	Uden adaptorstykke
Contact material	CuSn
Degree of pollution	3
Distributor	Fordelerblok
Fire load	0.11611 kWh
Food contact material	No
Halogen-free	Yes
Height (mm)	32.7 mm
Length (mm)	46 mm
Locking method	Integreret i plug-in-stik
Material enclosures	Polyamid (PA)
Max. Continuous temperature contact part	85 °C
Max. continuous temperature strain relief	105 °C
Mechanical coding	Yes
Mounting option	Med separat adapter
Number of inputs	3
Number of outputs	9
Number of poles	3
Pass-through resistance	1 mOhm
Pole marking	L, N, PE
Protection class (IP)	IP20
Rated current	25 A
Rated current for luminaire	25 A
Rated impulse voltage	4 kV
Rated voltage	250 V
REACH – contains substances from the Candidate List?	No
RoHS compliant	Yes
Surface treated contacts	Fortinnet
Type of integrated switch	None
UNSPSC	39121421
Width (mm)	30 mm
