Weidmüller Sikringsklemme wsi6 220v

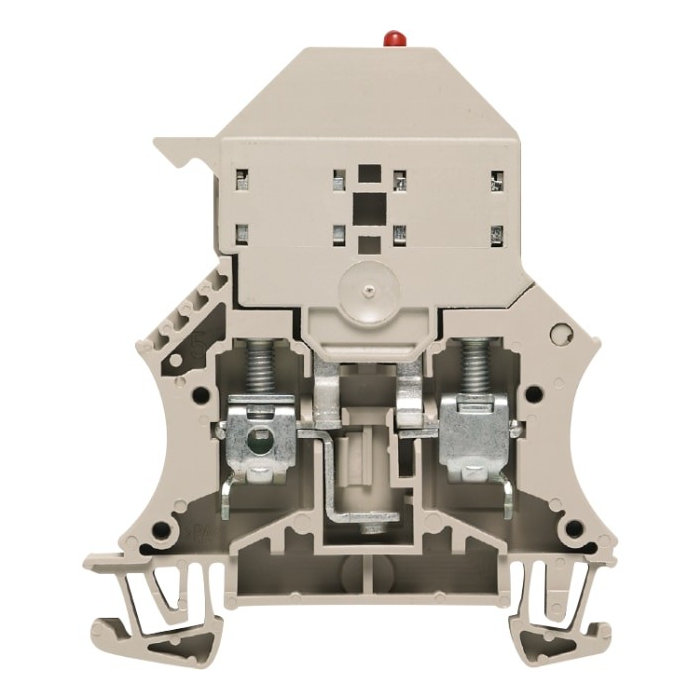

Fuse clamp 6mm² screw terminal WSI 6/LD 250AC beige 6.3A

Temporarily out of stock - Expected on stock 02-05-2026

EAN 4008190139834

Supplier no. 7921182518

Type no. WSI 6/LD 250AC

Regular Price €23.46

Min. order 1 Styk

Styk

Description / Weidmüller Sikringsklemme wsi6 220v

Link to manufacturer:
Weidmüller
Weidmüller

Colour	Beige
Completion stage required	Yes
Connection position	Sidelæns
Depth (mm)	71.5 mm
Electrical connection type 1	Skrueforbindelse
Electrical connection type 2	Skrueforbindelse
Error display voltage type	AC/DC
Flame retardant class of insulation materials ACC. with UL94	V0
Food contact material	No
Height (mm)	60 mm
Height at lowest possible mounting surface	71.5 mm
Installation method	DIN-skinne 35 mm
Insulating material	Termoplastisk
Length (mm)	60 mm
Max conductor cross-section finely threaded with tulle	0.5 - 6 mm²
Max conductor cross-section finely threaded without tulle	0.5 - 10 mm²
Max conductor cross-section multithreaded	1.5 - 10 mm²
Max conductor cross-section single-threaded	0.5 - 10 mm²
Number of levels	1
Operating temperature range	-50 - 120 °C
Operating voltage for fault indication	250 - 250 V
Rated current I	6.3 A
Rated voltage	250 V
REACH – contains substances from the Candidate List?	No
RoHS compliant	Yes
Type of error indicator	LED
Type of fuse holder	Svingbar
Type of security insert	Finsikringsholder 5x20 mm
UNSPSC	39121410
Width (mm)	7.9 mm
Width/grid dimension	7.9 mm
