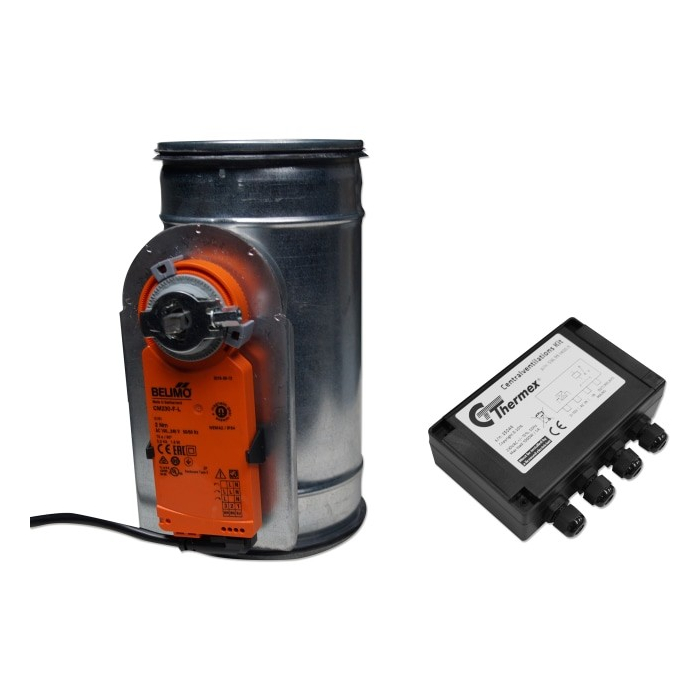

Thermex Cvl/vg link Ø125 til emhætte

Use

THERMEX HEAT RECOVERY LINK®
In houses with their own ventilation system with heat recovery, you can connect the THERMEX extractor so that the heated air from cooking passes through the heat recovery system and thereby helps to heat the outside air before it is blown into the house.
THERMEX HEAT RECOVERY LINK® (VG-link) is a system that enables heat recovery of the air from the hood.
The system operates via an engine damper, which opens either for 15-30-45-60 minutes when one of the four speed stages of the extractor is operated. At the same time, a signal is sent to the ventilation system, thereby maximizing the suction power.
The damper can be opened and closed partially or completely depending on the preset.
For connection, please refer to the instructions from the individual ventilation system provider.

THERMEX CENTRAL VENTILATION LINK®
In many apartment buildings today there is a centrally located fan that sucks from all apartments in the stairwell. Likewise, in some types of buildings decentralized ventilation is used, where in each apartment a fan is placed.
In both cases, the hoods in each apartment have no independent engine.
THERMEX Centralventilation Link to apartment (CVL-link) is a system that enables all extractors from THERMEX that support ''All options'' and which are marked with central ventilation (CVL-Link) to be connected to the central ventilation system of the apartment building or the decentralised ventilation.
The system operates via an engine damper which is connected to the THERMEX extractor. The engine damper can be preset to open and close partially or completely, both on ground ventilation and on forced operation. The setting must be made according to the prescribed data for the operation of the ventilation system.
When operating the speed stages 1-4 of the hood, the damper opens for 15-30-45 or 60 minutes, respectively, after which it goes back to basic ventilation.
