Viega Profipress bøjn mf/np 45gr 15
Main image
Click to view image in fullscreen
![]()

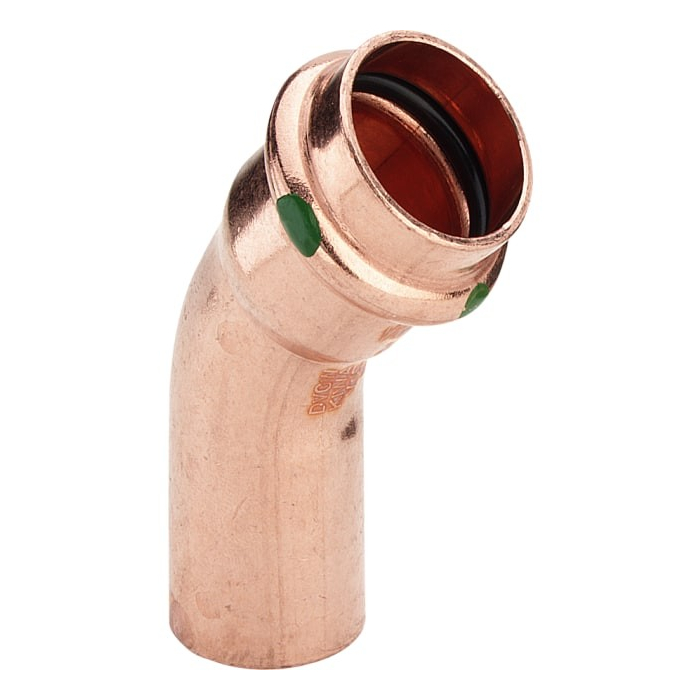

Profipress bend mf/np 45gr 15
26 Piece on stock (day-to-day delivery)
↻
Updating inventory, please wait...
Last Updated:
EAN
4015211292508
Supplier no.
0204015189
Type no.
292508
VVS No.
045511015
Price per Styk
€3.54
Excl. Tax:
€2.83
Excl. Tax:
Excl. Tax:
Regular Price
€16.63
Min. order 1 Styk
Description / Viega Profipress bøjn mf/np 45gr 15
Use
Profipress with SC Contur
Press fittings made of copper and used for hard as well as soft copper pipes, produced according to standard EN 1057.
No support bushing should be used for either hard or soft copper pipes. However, soft copper pipes must be calibrated before pressing.
Profipress is supplied in the dimensions.: 12-15-18-22-28-35-42-54-64-76.1-88.9-108 mm.
More Information
| Bend angle | 45 ° |
| Brand | VIEGA |
| Connection 1 | Glat nippel |
| Connection 2 | Pres system |
| Contour code | V |
| Description | 292508 |
| Dimension connection 1 | DN 12 |
| EAN number | 4015211292508 |
| Eccentric | No |
| External pipe diameter connection 1 | 15 mm |
| External pipe diameter connection 2 | 15 mm |
| FM examination | No |
| Food contact material | No |
| Form | Bøjning |
| Fuse characteristics | 16 bar |
| Fuse rating | No |
| Gas permit QA | No |
| Gaskets | EPDM |
| KIWA certified | Yes |
| Length connection 1 | 29 mm |
| Length connection 2 | 29 mm |
| LPCB study | No |
| Main color fitting | Bronze |
| Material connection 1 | Kobber |
| Material connection 2 | Kobber |
| Material quality connection 1 | Cu-DHP (CW024A) |
| Material quality connection 2 | Cu-DHP (CW024A) |
| Maximum mean temperature (continuous) | 110 °C |
| Maximum working pressure at 20 gr. C | 16 bar |
| Mean temperature (continuous) | -25 - 105 °C |
| Minimum medium temperature (continuous) | -25 °C |
| Nominal diameter connection 2 | DN 12 |
| Outline code connection 2 | V |
| Pack size | 10 |
| REACH – contains substances from the Candidate List? | No |
| Real working length connection 2 | 22 mm |
| Reducing | No |
| Series | Profipress |
| Stock item | Yes |
| Surface protection connection 1 | Ubehandlet |
| Surface protection connection 2 | Ubehandlet |
| Surface treatment connection 1 | Ubehandlet |
| Surface treatment connection 2 | Ubehandlet |
| System bound | Yes |
| UL study | No |
| ULC color | No |
| Unit | stk |
| UNSPSC | 40172601 |
| VdS-controlled | No |
| VVS number | 045511015 |
| With bottling | No |
| With sealing rings / gaskets | Yes |
| With stop buffer | No |
| With termic insulation | No |
| With vent | No |
| Zeta value | 0.6 |
